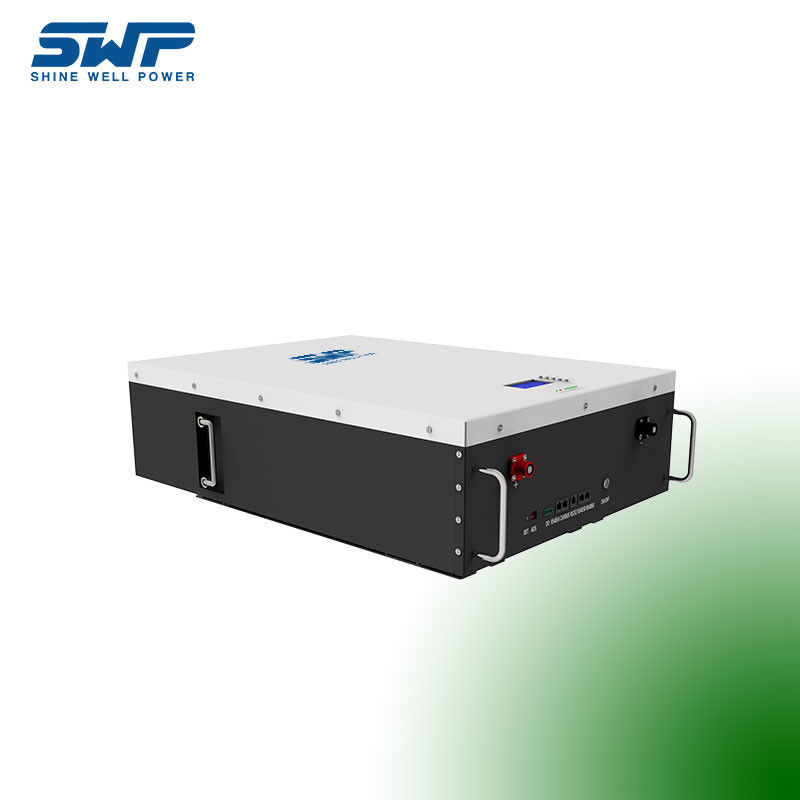

51.2V 200Ah salor energy storage system long cycles A Grade EVE 100Ah cells RS485 Communication customizable
Product Description:
Solar Energy's Wall Mounted Battery Storage is indeed a versatile solution for outdoor energy storage. Its customizable voltage options make it suitable for various applications, providing flexibility in meeting specific power requirements. The ease of installation adds to its convenience, allowing for quick setup and integration into existing systems.
The working temperature range of -20℃ to +50℃ indicates that the Powe Wall Energy System is designed to withstand a wide range of environmental conditions. This feature ensures its long-term use and stability, even in challenging climates.
The wall-mounted design is beneficial as it facilitates easy mounting and secure placement in outdoor settings. This flexibility allows for convenient installation in different locations, ensuring optimal utilization of available space. Whether it's for residential, commercial, or industrial applications, the wall-mounted battery storage system offers a practical choice for outdoor power wall energy storage.
| SWP51100-PW Power Wall Energy Storage System |
| Electrical specifications |
Nominal Voltage |
51.2V |
| Nominal Capacity |
200Ah |
| Parallel Connection |
Max. 16 units |
| BMS |
16S200A |
| Circuit Protection |
Over charge, Over discharge, Over current, Over temp, Short, Balance |
| Communication |
RS232 RS485 and CAN |
| Cycle Life |
3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge |
Less than 3% per month |
| Charge Efficiency |
100% @ 0.2C |
| Discharge Efficiency |
98%-100% @ 1C |
| Charge Specifications |
Charge Voltage |
57.6V±0.8V |
| Standard Current |
100A |
| Fast Current |
200A |
| Discharge Specifications |
Standard Current |
200A |
| Max.Con.Discharge |
300A |
| Cut-Of Voltage |
40±0.2V |
| Mechanical Specifications |
Dimension (mm) |
Customized |
| Approx Weight (KG) |
50 |
| Terminal Type |
KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material |
Black / Siliver / White Metal Cases |
| Cells Type |
EVE 3.2V100Ah |
| Temperature Specifications |
Charge Temp |
0℃-55℃ (32℉-131℉) |
| Discharge Temp |
-20℃-60℃ (-4℉-140℉) |
| Storage Temp |
-20℃-45℃ (-4℉-113℉) |
| Battery Type |
LiFePO4 |
| Cycle |
The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate |
UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) |
| After-sales service period |
5 Years |
| Estimate useful life |
≥10 Years |
| With Display |
Yes |
Features:
- Product Name: Wall Mounted Battery Storage
- Mounting Method: Wall Mounted
- Color: Black
- Working Temperature: -20℃~+50℃
- Installation: Easy Installation
- Storage Temperature: -20℃~+50℃
- Solar Energy Storage System
- Power Wall Storage System
Technical Parameters:
| Product Name |
Wall Mounted Battery Storage |
| Color |
Black |
| Size |
Customizable |
| Storage Temperature |
-20℃~+50℃ |
| Warranty |
5 Years |
| Protection Level |
IP65 |
| Capacity |
Customizable |
| Material |
Aluminum Alloy |
| Mounting Method |
Wall Mounted |
| Life Cycle |
Over 6000 Times |
| Salor Energy Storage System |
Yes |
| Power Wall Energy System |
Yes |
| Solar Energy Battery Storage |
Yes |
Applications:
SWP Wall Mounted Battery Storage: Outdoor Power Wall Storage System for Easy Installation
SWP Wall Mounted Battery Storage provides a reliable, high-performance outdoor power wall storage system that can be easily installed. This system, with model number SWP-48100RM, is made in China and features customizable capacity, over 6000 cycles of life cycle, and IP65 protection level. It is ideal for home, office, and commercial applications.
The unique features of theSWP Wall Mounted Battery Storage include its easy installation, long-lasting life cycle, and robust IP65 protection level. It is perfect for powering any outdoor electrical equipment and devices, such as solar panels, electric vehicles, and other energy-efficient devices. This wall-mounted battery storage system is also designed to be compatible with a wide range of other power sources, such as wind turbines, generators, and fuel cells. The installation process is simple and fast, and the system offers a secure and reliable power supply for any outdoor application.
SWP Wall Mounted Battery Storage is the perfect solution for an efficient, reliable, and secure power source for any outdoor application. With customizable capacity, over 6000 cycles of life cycle, and IP65 protection, this system offers a powerful and reliable power source for any outdoor application. It is also designed for easy installation and is compatible with a wide range of other power sources.
Customization:
Customized Wall Mounted Battery Storage from Salor Energy Storage System Manufacturer
- Brand Name: SWP
- Model Number: SWP-48100RM
- Place of Origin: China
- Size: Customizable
- Voltage: Customizable
- Storage Temperature: -20℃~+50℃
- Product Name: Wall Mounted Battery Storage
- Application: Outdoor
Salor Energy is a leading manufacturer of power wall storage systems, providing customized wall mounted battery storage solutions tailored to your needs. Our Salor Energy Battery Storage System is perfect for outdoor applications with its wide temperature range of -20℃~+50℃.
Support and Services:
Wall Mounted Battery Storage Technical Support & Services
At [COMPANY NAME], we are committed to providing our customers with the highest level of technical support and service for our Wall Mounted Battery Storage products. Our experienced technical team is available to provide our customers with the following services:
- Assistance with installation and setup
- Troubleshooting and repairs
- Product updates and maintenance
- Help with product customization
- Technical advice and guidance
If you have any questions or require technical assistance with our Wall Mounted Battery Storage products, please don’t hesitate to contact us.
Packing and Shipping:
Packaging and Shipping for Wall Mounted Battery Storage
- The wall mounted battery storage should be packaged in a box or a bag with bubble wrap and other protective material.
- The package should be labeled clearly with the name of the product and other necessary information such as weight, size, etc.
- The package should be securely sealed and ready for shipping.
- The package should be shipped using a reliable courier service with tracking information.
FAQ:
Q1: What is the brand and model number of the Wall Mounted Battery Storage?
A1: The brand is SWP and the model number is SWP-48200PW
Q2: Where is Wall Mounted Battery Storage manufactured?
A2: Wall Mounted Battery Storage is manufactured in China.
Q3: What is the capacity of the Wall Mounted Battery Storage?
A3: The capacity of the Wall Mounted Battery Storage is 48V200Ah.
Q4: What type of batteries does the Wall Mounted Battery Storage use?
A4: The Wall Mounted Battery Storage uses lithium-ion batteries.
Q5: Does the Wall Mounted Battery Storage come with any accessories?
A5: Yes, the Wall Mounted Battery Storage comes with a wall mounting bracket and a BMS.
