Product Details
Place of Origin: China
Brand Name: SWP
Certification: UL,MSDS,UN38.3,IEC62619
Model Number: SWP-48100RM
Payment & Shipping Terms
Minimum Order Quantity: 100
Packaging Details: carton or wooden packing
Delivery Time: 25 WORK DAYS
Payment Terms: T/T, L/C
Supply Ability: 200PCS/DAY
Color: |
Black |
Installation: |
Easy Installation |
Capacity: |
Customizable |
Storage Temperature: |
-20℃~+50℃ |
Material: |
Aluminum Alloy |
Protection Level: |
IP65 |
Mounting Method: |
Wall Mounted |
Working Temperature: |
-20℃~+50℃ |
Color: |
Black |
Installation: |
Easy Installation |
Capacity: |
Customizable |
Storage Temperature: |
-20℃~+50℃ |
Material: |
Aluminum Alloy |
Protection Level: |
IP65 |
Mounting Method: |
Wall Mounted |
Working Temperature: |
-20℃~+50℃ |
Mounting Method Wall Mounted Customizable Wall Mounted Battery Storage -20C- 50C

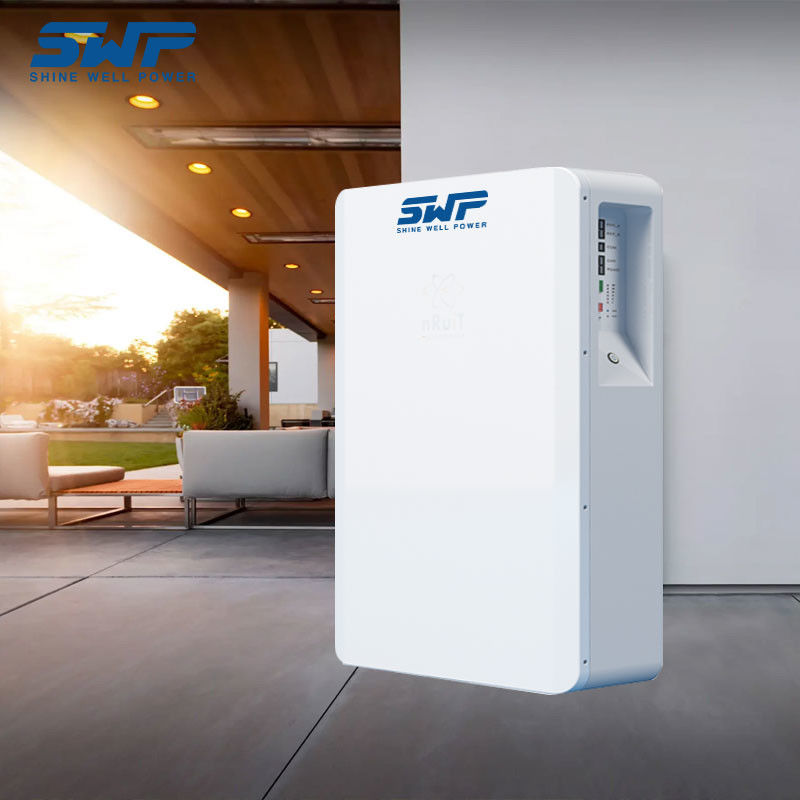

Our Wall Mounted Battery Storage System is a top-of-the-line power wall energy system that is designed to provide reliable and efficient home energy storage. It is wall mounted for easy installation and features a 5-year warranty for added peace of mind. The storage temperature range of the system is -20℃~+50℃, and its voltage is customizable to meet your specific needs. With its advanced power wall storage system, you can enjoy reliable, long-lasting energy storage with superior performance.
| SWP51200-PW Power Wall Battery Energy Storage System | ||
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah | |
| Parallel Connection | Max. 16 units | |
| BMS | 16S200A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | RS232 RS485 and CAN | |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100% @ 0.2C | |
| Discharge Efficiency | 98%-100% @ 1C | |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 100A | |
| Fast Current | 200A | |
| Discharge Specifications | Standard Current | 200A |
| Max.Con.Discharge | 300A | |
| Cut-Of Voltage | 40±0.2V | |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 90 | |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal | |
| Cases Color/Material | Black / Siliver / White Metal Cases | |
| Cells Type | EVE 3.2V100Ah | |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) | |
| Storage Temp | -20℃-45℃ (-4℉-113℉) | |
| Battery Type | LiFePO4 | |
| Cycle | The cycle life shall not be less than 3000 times when DOD is 100%. The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
|
| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) | |
| After-sales service period | 5 Years | |
| Estimate useful life | ≥10 Years | |
| With Display | No | |
| Parameter | Value |
|---|---|
| Product Name | Wall Mounted Battery Storage |
| Color | Black |
| Installation | Easy Installation |
| Capacity | Customizable |
| Protection Level | IP65 |
| Warranty | 5 Years |
| Life Cycle | Over 6000 Times |
| Mounting Method | Wall Mounted |
| Working Temperature | -20℃~+50℃ |
| Material | Aluminum Alloy |
| Energy Storage System | Salor |
| Power Wall Battery | LiFePO4 Battery |
SWP-48100RM is a wall mounted energy storage system from the brand name SWP. This powe wall energy system is designed to store energy, and it is customizable in terms of size and voltage. It is also IP65 rated, meaning it is dust-tight and can withstand low pressure water jets from any direction. With a working temperature of -20℃~+50℃, this wall mounted energy storage system is suitable for both indoor and outdoor applications.
Introducing the SWP-48100RM, a Wall Mounted Battery Storage System from SWP – the perfect power storage solution for your home energy needs!
This Wall Mounted Battery Storage System features a rugged aluminum alloy construction, a sleek black design, and a customizable voltage. With a life cycle of over 6000 times, this system offers reliable and dependable power storage for your home energy needs.
The SWP-48100RM is the ideal home energy storage system for your power wall storage needs. Salor Energy Battery has designed this system to provide a reliable source of power storage for your home needs.
For technical support and service for our Wall Mounted Battery Storage product, our team is available to answer any questions you may have. Our team is comprised of industry experts with expertise in battery storage technology and can help troubleshoot any technical issues you may be having. We can also provide advice and guidance on installation and use of our product.
We also offer a comprehensive service package for our Wall Mounted Battery Storage product. This package includes regular maintenance and inspection of the product, as well as repairs and replacements of any defective parts. We also offer a warranty for our product, ensuring that any issues you may have with the product will be addressed in a timely manner.
If you have any questions or concerns regarding technical support or service for our Wall Mounted Battery Storage product, please do not hesitate to contact us. We are available to answer any questions you may have and provide any assistance you may need.
The wall mounted battery storage is packaged and shipped according to the following guidelines:
