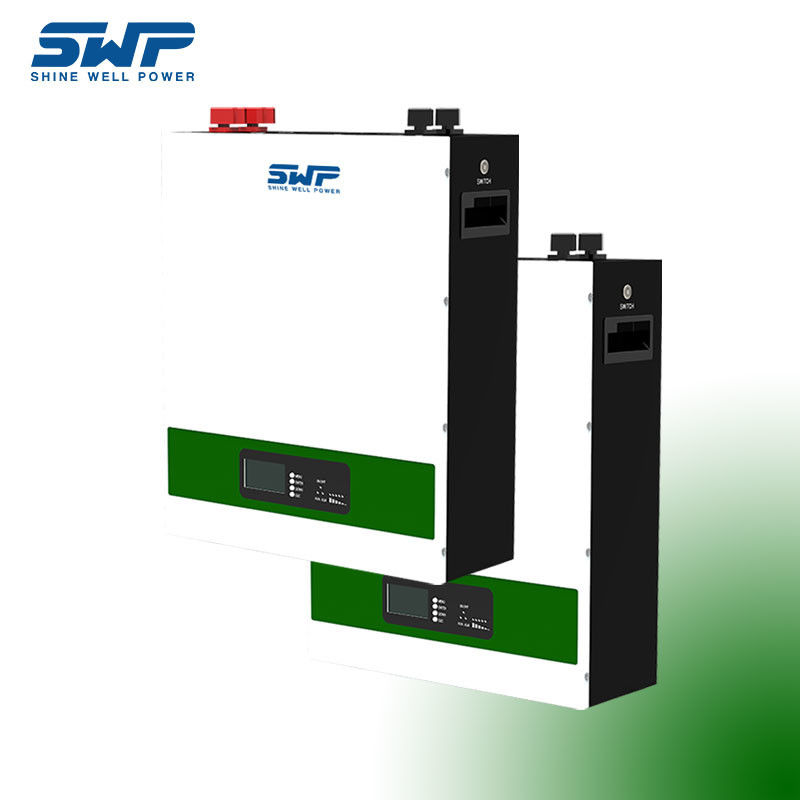

Product Description:
The wall mounted energy storage system is a perfect choice for those who need a reliable and long-lasting power wall battery. Our wall mounted energy storage system is made of high-quality aluminum alloy, which offers high performance and durability. The system also offers an IP65 protection level, providing complete protection from dust, moisture, and other environmental elements. The system is available in black and features a five-year warranty, thereby ensuring that your investment is secure. Moreover, the capacity of this wall mounted energy storage system is customizable, allowing you to have the perfect energy storage system for your needs.
| SWP51100-PW Power Wall Energy Storage System |
| Electrical specifications |
Nominal Voltage |
51.2V |
| Nominal Capacity |
100Ah |
| Parallel Connection |
Max. 16 units |
| BMS |
16S100A |
| Circuit Protection |
Over charge, Over discharge, Over current, Over temp, Short, Balance |
| Communication |
RS232 RS485 and CAN |
| Cycle Life |
3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge |
Less than 3% per month |
| Charge Efficiency |
100% @ 0.2C |
| Discharge Efficiency |
98%-100% @ 1C |
| Charge Specifications |
Charge Voltage |
57.6V±0.8V |
| Standard Current |
50A |
| Fast Current |
100A |
| Discharge Specifications |
Standard Current |
100A |
| Max.Con.Discharge |
200A |
| Cut-Of Voltage |
40±0.2V |
| Mechanical Specifications |
Dimension (mm) |
Customized |
| Approx Weight (KG) |
50 |
| Terminal Type |
KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material |
Black / Siliver / White Metal Cases |
| Cells Type |
EVE 3.2V100Ah |
| Temperature Specifications |
Charge Temp |
0℃-55℃ (32℉-131℉) |
| Discharge Temp |
-20℃-60℃ (-4℉-140℉) |
| Storage Temp |
-20℃-45℃ (-4℉-113℉) |
| Battery Type |
LiFePO4 |
| Cycle |
The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate |
UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) |
| After-sales service period |
5 Years |
| Estimate useful life |
≥10 Years |
| With Display |
No |
Features:
- Product Name: Wall Mounted Battery Storage
- Capacity: Customizable
- Installation: Easy Installation
- Mounting Method: Wall Mounted
- Storage Temperature: -20℃~+50℃
- Power Wall Storage System: Salor Energy Battery
- Power Wall Battery: Salor Energy Battery
Technical Parameters:
| Product Name |
Technical Parameters |
| Wall Mounted Battery Storage |
- Color: Black
- Mounting Method: Wall Mounted
- Capacity: Customizable
- Life Cycle: Over 6000 Times
- Storage Temperature: -20℃~+50℃
- Installation: Easy Installation
- Warranty: 5 Years
- Protection Level: IP65
- Application: Outdoor
- Power Wall Storage System
- Salor Energy Battery
- Home Energy Storage System
|
Applications:
Wall Mounted Battery Storage – Salor Energy Storage System
SWP’s Wall Mounted Battery Storage is a power wall battery storage system that is designed to provide the highest level of energy storage and efficient recharging. Its wall mounted design makes it easy to integrate with existing energy systems. The IP65 protection level ensures the battery is protected from dust and water. Constructed from aluminum alloy, the Wall Mounted Battery Storage is strong and reliable, and includes a 5-year warranty. The capacity is customizable so it can be tailored to meet your individual energy needs. Perfect for commercial, industrial and residential energy storage, SWP’s Wall Mounted Battery Storage is the ideal rechargeable battery storage solution.
Customization:
SWP Wall Mounted Battery Storage is the perfect solution for your home energy storage system. With a brand name of SWP, model number of SWP-48100RM, and made of durable aluminum alloy, this wall mounted battery storage offers customizable capacity and size, making it suitable for your power wall energy system.
Our SWP Wall Mounted Battery Storage is designed for easy wall mounting and provides reliable power for your home energy system. It is the perfect way to store and manage energy for your home energy storage system.
Support and Services:
Wall Mounted Battery Storage Support and Service
We provide support and service for Wall Mounted Battery Storage. Our team of dedicated experts can provide comprehensive support and service for your Wall Mounted Battery Storage.
Technical Support
We have an experienced technical support team, available 24/7 to help with all your Wall Mounted Battery Storage needs. We can provide assistance with installation, troubleshooting, and maintenance.
Warranty
All of our Wall Mounted Battery Storage products are covered by a one-year warranty. If you experience any problems with your product, we will repair or replace it at no additional charge.
Customer Service
If you have any questions or concerns, our customer service team is happy to help. We can answer any questions you may have about our Wall Mounted Battery Storage products, and provide advice on the best product for your needs.
Packing and Shipping:
Packaging and Shipping of Wall Mounted Battery Storage
The Wall Mounted Battery Storage is a specialized product and needs extra attention while packing and shipping. Here is the step-by-step guide on how the product should be packaged and shipped:
- The product should be carefully inspected and tested for any damages before packing.
- The product should be packed in a protective box, making sure that the product is secure and protected from any external damage.
- The box should be sealed properly and should be clearly labeled with the company name and product details.
- The box should be securely stored in a shipping container and shipped to the customer. Any other items should not be put in the same container as the product.
FAQ:
Q&A about SWP-48100RM Wall Mounted Battery Storage
- Q: What is the brand name of this wall mounted battery storage?
A: The brand name of this wall mounted battery storage is SWP.
- Q: What is the model number of this wall mounted battery storage?
A: The model number of this wall mounted battery storage is SWP-48100RM.
- Q: Where is this wall mounted battery storage made?
A: This wall mounted battery storage is made in China.
- Q: What is the capacity of this wall mounted battery storage?
A: This wall mounted battery storage has a capacity of 48100RM.
- Q: What features does this wall mounted battery storage have?
A: This wall mounted battery storage features a durable design and efficient performance.
