Product Description:

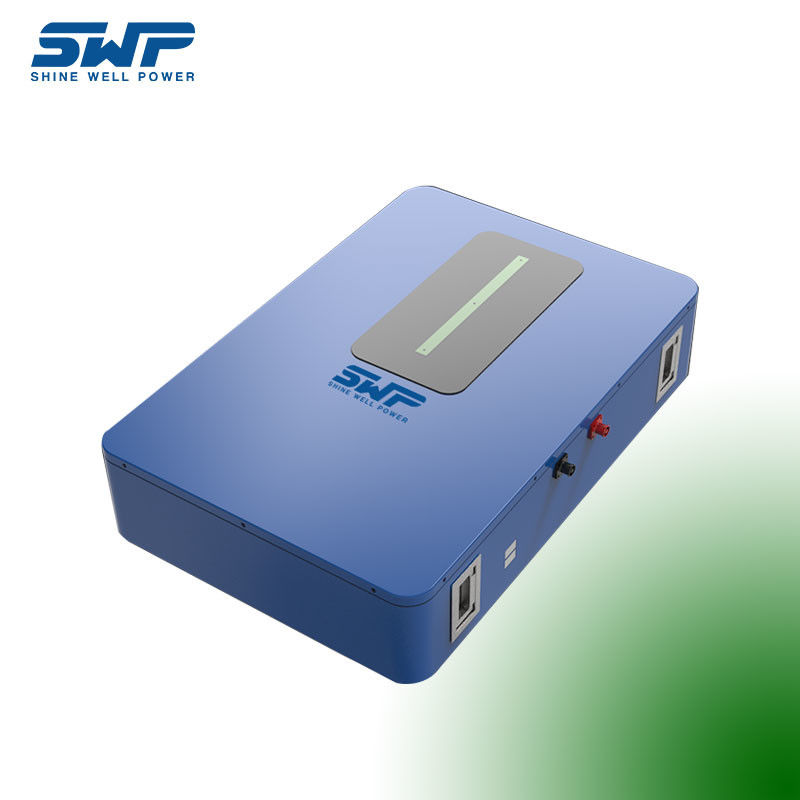

The Home Battery Energy Storage System is the perfect solution for anyone wanting to power their home with renewable energy. Our wall-mounted battery storage system offers a capacity of 5-20kWh, allowing you to store and use energy from solar, wind or other renewable sources whenever you need it. With a cycle life of 5000-8000, our battery will provide reliable, long-term energy storage to meet your needs. Additionally, the battery features safety protections such as overcharge, overdischarge, overcurrent, short circuit and temperature protection, along with a 51.2V voltage output. Our storage system also comes with a remote monitoring system, allowing you to stay in control of your energy usage. Our Home Battery Energy Storage System is the ideal storage option for any home wanting to make use of renewable energy.
| SWP51100-PW Solar Battery Energy Storage System |
| Electrical specifications |
Nominal Voltage |
51.2V |
| Nominal Capacity |
100Ah |
| Parallel Connection |
Max. 16 units |
| BMS |
16S100A |
| Circuit Protection |
Over charge, Over discharge, Over current, Over temp, Short, Balance |
| Communication |
RS232 RS485 and CAN |
| Cycle Life |
3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge |
Less than 3% per month |
| Charge Efficiency |
100% @ 0.2C |
| Discharge Efficiency |
98%-100% @ 1C |
| Charge Specifications |
Charge Voltage |
57.6V±0.8V |
| Standard Current |
50A |
| Fast Current |
100A |
| Discharge Specifications |
Standard Current |
100A |
| Max.Con.Discharge |
200A |
| Cut-Of Voltage |
40±0.2V |
| Mechanical Specifications |
Dimension (mm) |
Customized |
| Approx Weight (KG) |
50 |
| Terminal Type |
KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material |
Black / Siliver / White Metal Cases |
| Cells Type |
EVE 3.2V100Ah |
| Temperature Specifications |
Charge Temp |
0℃-55℃ (32℉-131℉) |
| Discharge Temp |
-20℃-60℃ (-4℉-140℉) |
| Storage Temp |
-20℃-45℃ (-4℉-113℉) |
| Battery Type |
LiFePO4 |
| Cycle |
The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate |
UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) |
| After-sales service period |
5 Years |
| Estimate useful life |
≥10 Years |
| With Display |
No |
Features:
- Product Name: Home Battery Energy Storage System
- Application: Residential, Commercial
- Cycle Life: 5000-8000
- Installation Method: Wall-mounted, Floor-mounted
- Voltage: 51.2V
- Warranty: 5years
Technical Parameters:
| Parameter |
Value |
| Remote Monitoring System |
Yes |
| Operating Temperature |
-20℃~50℃ |
| Compatible Inverter |
Yes |
| Warranty |
5years |
| Installation Method |
Wall-mounted, Floor-mounted |
| Cycle Life |
5000-8000 |
| Capacity |
5-20kWh |
| Battery Management System |
Yes |
| Power |
3-10kW |
| Application |
Residential, Commercial |
Applications:
The SWP-48100RM Home Battery Energy Storage System, made by SWP, is the perfect choice for residential and commercial use. This HV battery pack uses a salor battery storage system to store up to 5-20kWh of energy, and comes with an advanced battery management system for continuous monitoring. It also features a remote monitoring system and a communication interface with RS232, RS485, and CAN. With its high-quality house energy storage system, the SWP-48100RM provides the perfect energy storage solution for your home or business.
Customization:
SWP Customized Home Battery Energy Storage System
We offer a variety of customized home battery energy storage solutions that fit your needs. Our SWP-48100RM model is a wall mounted battery storage system that is perfect for residential applications. It is equipped with a remote monitoring system and a capacity range of 5-20kWh. It also has communication interfaces for RS232, RS485, and CAN, a cycle life of 5000-8000, and safety protection features such as overcharge, overdischarge, overcurrent, short circuit, and temperature protection. Our Salor battery storage systems are designed to be reliable and efficient, providing you with a reliable and energy efficient home battery storage system.
Support and Services:
Home Battery Energy Storage System Technical Support and Services
We provide full technical support and services for the Home Battery Energy Storage System, from installation to maintenance. Our services include:
- Installation of the Home Battery Energy Storage System
- Inspection and maintenance of the system
- Troubleshooting and repair of any technical issues
- Comprehensive customer support
We offer a dedicated team of service technicians and engineers to ensure that your Home Battery Energy Storage System is running at its best. Our team is available to answer any questions or concerns you may have.
For further information about our technical support and services, please contact us at info@example.com.
Packing and Shipping:
Packaging and Shipping
The Home Battery Energy Storage System is packaged securely and shipped in a cardboard box. The box is reinforced with plastic to ensure its contents remain safe during transport.
The Home Battery Energy Storage System is shipped with a standard ground courier service. We recommend customers select a premium shipping option if they need their order delivered faster.
FAQ:
- Q: What is the brand and model number of the Home Battery Energy Storage System? A: The Home Battery Energy Storage System is a SWP SWP-48100RM model.
- Q: Where is the Home Battery Energy Storage System made? A: The Home Battery Energy Storage System is made in China.
- Q: What are the main characteristics of the Home Battery Energy Storage System? A: The Home Battery Energy Storage System has a long service life, high energy storage density, and is environmentally friendly.
- Q: What is the capacity of the Home Battery Energy Storage System? A: The Home Battery Energy Storage System has a capacity of 48100RM.
- Q: What are the advantages of the Home Battery Energy Storage System? A: The Home Battery Energy Storage System is cost-effective, can store a large amount of electrical energy, and is easy to install and maintain.
