Highlight:
Wall Mounted Battery Storage 51.2V
, Wall Mounted Battery Storage 100Ah
, EVE Cells lithium energy battery
A Grade EVE Cells Wall Mounted Battery Storage Lithium 51.2V 100Ah
51.2V 100Ah Home Energy Battery Reliable And Temperature-Friendly Long Cycles A Grade EVE Cells Lithium Battery Pack
Product Description:

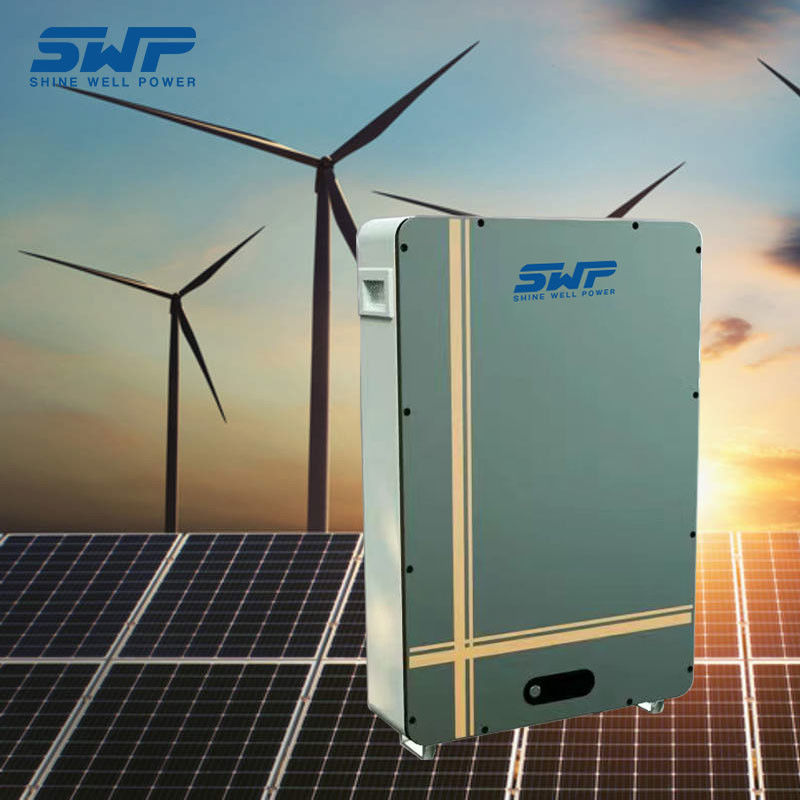

Our Wall Mounted Battery Storage is a home solar battery storage system designed for providing energy storage and home energy storage. It is made of high-quality aluminum alloy and thus is highly durable and reliable. The capacity and size of this storage system can be customized to meet the needs of the customers. The wall-mounted design makes it easy for the users to install and use. The storage system is available in black color, adding elegance to your home decor.
Features:
- Product Name: Wall Mounted Battery Storage
- Material: Aluminum Alloy
- Mounting Method: Wall Mounted
- Storage Temperature: -20℃~+50℃
- Voltage: Customizable
- Working Temperature: -20℃~+50℃
- Home Battery Storage System
- Energy Storage System Battery
- Household Battery Pack
| SWP51100-PW Power Wall Energy Storage System |
| Electrical specifications |
Nominal Voltage |
51.2V |
| Nominal Capacity |
100Ah |
| Parallel Connection |
Max. 16 units |
| BMS |
16S100A |
| Circuit Protection |
Over charge, Over discharge, Over current, Over temp, Short, Balance |
| Communication |
RS232 RS485 and CAN |
| Cycle Life |
3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge |
Less than 3% per month |
| Charge Efficiency |
100% @ 0.2C |
| Discharge Efficiency |
98%-100% @ 1C |
| Charge Specifications |
Charge Voltage |
57.6V±0.8V |
| Standard Current |
50A |
| Fast Current |
100A |
| Discharge Specifications |
Standard Current |
100A |
| Max.Con.Discharge |
200A |
| Cut-Of Voltage |
40±0.2V |
| Mechanical Specifications |
Dimension (mm) |
Customized |
| Approx Weight (KG) |
50 |
| Terminal Type |
KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material |
Black / Siliver / White Metal Cases |
| Cells Type |
EVE 3.2V100Ah |
| Temperature Specifications |
Charge Temp |
0℃-55℃ (32℉-131℉) |
| Discharge Temp |
-20℃-60℃ (-4℉-140℉) |
| Storage Temp |
-20℃-45℃ (-4℉-113℉) |
| Battery Type |
LiFePO4 |
| Cycle |
The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate |
UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) |
| After-sales service period |
5 Years |
| Estimate useful life |
≥10 Years |
| With Display |
Yes |
Technical Parameters:
| Product Attributes |
Specifications |
| Energy Storage Lithium Battery |
Household Battery Storage, Energy Storage Lithium Battery System |
| Color |
Black |
| Working Temperature |
-20℃~+50℃ |
| Storage Temperature |
-20℃~+50℃ |
| Capacity |
Customizable |
| Material |
Aluminum Alloy |
| Life Cycle |
Over 6000 Times |
| Installation |
Easy Installation |
| Size |
Customizable |
| Protection Level |
IP65 |
| Application |
Outdoor |
Applications:
Applications and Scenarios for SWP Wall Mounted Battery Storage
The SWP-48100PW Wall Mounted Battery Storage is a powerful home energy solution that provides reliable power for a variety of applications and scenarios. The wall mounted design and easy installation allows for convenient placement and maintenance of the unit. With a black finish, IP65 protection level and five-year warranty, the SWP Wall Mounted Battery Storage is a great choice for any household. This battery pack is perfect for home solar battery storage systems, providing long-term storage for energy generated from solar panels.
The SWP Wall Mounted Battery Storage can also be used for a number of other household applications. It can be used to provide backup power in case of an unexpected power outage, or to store excess energy from other renewable sources such as wind turbines or hydroelectric power. Additionally, it can be used to power home appliances, allowing for the efficient use of energy and helping to reduce energy bills. The SWP Wall Mounted Battery Storage is a great choice for any home energy storage needs.
Customization:
SWP Wall Mounted Battery Storage System for Home & Household Energy Storage
- Brand Name: SWP
- Model Number: SWP-48100PW
- Place of Origin: China
- Size: Customizable
- Voltage: Customizable
- Warranty: 5 Years
- Application: Outdoor
- Installation: Easy Installation
The SWP Wall Mounted Battery Storage System is designed for home and household energy storage. It offers customizable size and voltage, and offers easy installation, making it ideal for your energy storage needs. With a 5 year warranty, you can be sure that you are investing in a product that will last.
Support and Services:
Wall Mounted Battery Storage Technical Support and Service
We provide technical support and service to ensure your Wall Mounted Battery Storage is running smoothly and safely. Our technical support team is available 24/7 to answer any questions or address any issue you may have. We strive to provide prompt and reliable service.
If you experience any problems with your Wall Mounted Battery Storage, please contact our technical support team. Our team will provide you with detailed instructions on how to troubleshoot and resolve your issue. We will also provide you with detailed information on how to maintain your device and keep it running smoothly.
In addition to technical support and service, we offer a wide range of resources to help you get the most out of your Wall Mounted Battery Storage. Our resources include installation guides, product FAQs, and detailed product manuals.
We are committed to providing the highest quality technical support and service for our Wall Mounted Battery Storage customers. If you have any questions or concerns, please don't hesitate to contact us.
Packing and Shipping:
Packaging and Shipping for Wall Mounted Battery Storage
Our Wall Mounted Battery Storage products are securely packaged and shipped to ensure they reach you in the best possible condition.
All our items are packaged in quality materials like cardboard boxes, bubble wrap and other protective materials to ensure safe transit.
We ship our products with reputable courier companies such as FedEx, UPS, and DHL to ensure fast and reliable delivery.
We also offer a range of delivery services to suit your needs:
- Standard Delivery - typically takes 2-7 business days
- Express Delivery - typically takes 1-2 business days
- Overnight Delivery - typically takes 1 business day
For more information, please contact us.
FAQ:
- Q: What brand is the Wall Mounted Battery Storage?
A: The Wall Mounted Battery Storage is manufactured by SWP.
- Q: What is the model number of the Wall Mounted Battery Storage?
A: The model number of the Wall Mounted Battery Storage is SWP-48100WP.
- Q: Where is the Wall Mounted Battery Storage manufactured?
A: The Wall Mounted Battery Storage is manufactured in China.
- Q: What are the features of the Wall Mounted Battery Storage?
A: The Wall Mounted Battery Storage is a durable, reliable battery storage solution that is easy to install and maintain. It is designed to be mounted on walls or other surfaces and features a long-lasting battery life.
- Q: What is the capacity of the Wall Mounted Battery Storage?
A: The Wall Mounted Battery Storage has an estimated capacity of 100Ah.
