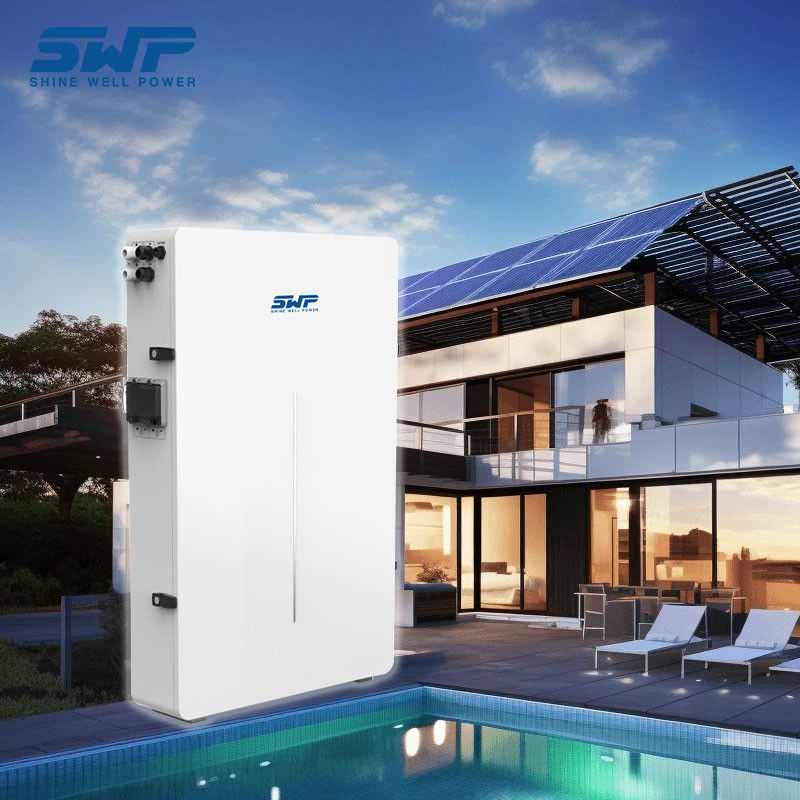

SWP51200 Commercial Wall Mounted Battery Storage Optimize Your Energy Usage A Grade Cells LiFePO4 Battery Pack
Product Description:
Our Wall Mounted Battery Storage is an ideal solution for household energy storage and energy storage systems. This product features a black color and IP65 protection level, making it perfect for both indoor and outdoor use. The voltage can be customized to suit your needs. With a mounting method of wall mounting, you can easily install it in your desired setting. The product also comes with an operating temperature range of -20℃ to +50℃, so you can rest assured that it can operate in various environments. This makes it an ideal choice for energy storage applications and energy storage systems. With its highly reliable performance and long-lasting durability, Wall Mounted Battery Storage is the perfect choice for all of your energy storage needs.
Features:
| SWP51200-PW Solar Energy Storage System |
| Electrical specifications |
Nominal Voltage |
51.2V |
| Nominal Capacity |
200Ah |
| Parallel Connection |
Max. 16 units |
| BMS |
16S200A |
| Circuit Protection |
Over charge, Over discharge, Over current, Over temp, Short, Balance |
| Communication |
RS232 RS485 and CAN |
| Cycle Life |
3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge |
Less than 3% per month |
| Charge Efficiency |
100% @ 0.2C |
| Discharge Efficiency |
98%-100% @ 1C |
| Charge Specifications |
Charge Voltage |
57.6V±0.8V |
| Standard Current |
100A |
| Fast Current |
200A |
| Discharge Specifications |
Standard Current |
200A |
| Max.Con.Discharge |
300A |
| Cut-Of Voltage |
40±0.2V |
| Mechanical Specifications |
Dimension (mm) |
Customized |
| Approx Weight (KG) |
90 |
| Terminal Type |
KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material |
Black / Siliver / White Metal Cases |
| Cells Type |
EVE 3.2V100Ah |
| Temperature Specifications |
Charge Temp |
0℃-55℃ (32℉-131℉) |
| Discharge Temp |
-20℃-60℃ (-4℉-140℉) |
| Storage Temp |
-20℃-45℃ (-4℉-113℉) |
| Battery Type |
LiFePO4 |
| Cycle |
The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate |
UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) |
| After-sales service period |
5 Years |
| Estimate useful life |
≥10 Years |
| With Display |
No |
- Product Name: Wall Mounted Battery Storage
- Application: Outdoor
- Warranty: 5 Years
- Voltage: Customizable
- Color: Black
- Energy Storage Battery Pack
- Home Energy Storage Battery
- Household Battery Storage
Technical Parameters:
| Product Name |
Wall Mounted Battery Storage |
| Life Cycle |
Over 6000 Times |
| Storage Temperature |
-20℃~+50℃ |
| Color |
Black |
| Installation |
Easy Installation |
| Mounting Method |
Wall Mounted |
| Warranty |
5 Years |
| Working Temperature |
-20℃~+50℃ |
| Material |
Aluminum Alloy |
| Capacity |
Customizable |
| Keywords |
Home Energy Storage Battery, Energy Storage Lithium Battery, Home Solar Battery Storage System |
Applications:
SWP Wall Mounted Battery Storage is a perfect energy storage solution for homes, offices, and other commercial places. It is made of high quality aluminum alloy and is IP65 certified for maximum protection against rain, dust, and other extreme environmental conditions. This energy storage lithium battery is designed to be mounted on walls, making it a great space saver. With a 5-year warranty, this home solar battery storage system is sure to provide you with reliable performance for years to come. The black color of this SWP-48100WP battery storage system ensures it will blend seamlessly into any indoor or outdoor environment.
This SWP Wall Mounted Battery Storage is designed to provide a reliable and efficient energy storage solution for homes, offices, and other commercial places. This battery energy storage system is built with high-quality aluminum alloy for maximum durability and reliability. It is IP65 certified for maximum protection against rain, dust, and other extreme environmental conditions. This home solar battery storage system can be mounted on walls, making it a great space saver. With a 5-year warranty, this SWP-48100WP battery storage system is sure to provide you with reliable performance for years to come.
Customization:
Wall Mounted Battery Storage
Brand Name: SWP
Model Number: SWP-48200WP
Place of Origin: China
Product Name: Wall Mounted Battery Storage
Warranty: 5 Years
Working Temperature: -20℃~+50℃
Protection Level: IP65
Mounting Method: Wall Mounted
Features of SWP Wall Mounted Battery Storage:
- Energy Storage System Battery
- Home Battery Storage System
- Home Energy Storage Battery
Support and Services:
Technical Support and Service for Wall Mounted Battery Storage
We provide technical support and service for the Wall Mounted Battery Storage product including:
- Troubleshooting and repair of product components
- On-site installation
- Replacement parts
- Training and customer education
- Product upgrades
- Software support
We also offer customer service options including:
- 24/7 customer support
- Live chat support
- Phone support
- Email support
- Online FAQs
Packing and Shipping:
Packaging and Shipping for Wall Mounted Battery Storage:
The Wall Mounted Battery Storage is packaged and shipped with the following:
- One Wall Mount
- Four screws for mounting
- One Battery Storage Module
- One Power Cord
- Instructions for use and installation
- Carton for shipping and protection
FAQ:
Q&A for SWP-48200PW Wall Mounted Battery Storage
Q1: What is the Brand Name of this Wall Mounted Battery Storage?
A1: The Brand Name of this Wall Mounted Battery Storage is SWP.
Q2: What is the Model Number of this Wall Mounted Battery Storage?
A2: The Model Number of this Wall Mounted Battery Storage is SWP-48w00PW.
Q3: Where is this Wall Mounted Battery Storage made?
A3: This Wall Mounted Battery Storage is made in China.
Q4: How many batteries can this Wall Mounted Battery Storage hold?
A4: This Wall Mounted Battery Storage can hold up to 48 batteries.
Q5: What is the maximum power capacity of this Wall Mounted Battery Storage?
A5: The maximum power capacity of this Wall Mounted Battery Storage is 10KW.
