51.2V 200Ah Battery Energy Storage Station 16S200A BMS Commercial

Product Details

Place of Origin: China

Brand Name: SWP

Certification: UL, MSDS, UN38.3, CE,IEC

Model Number: SWP-48200WP

Payment & Shipping Terms

Minimum Order Quantity: 200

Packaging Details: Carton Or Wooden

Delivery Time: 25

Payment Terms: T/T, L/C

Supply Ability: 200PCS/Day

Get Best Price
Contact Now
Specifications
Highlight:

200Ah Battery Energy Storage Station

,

51.2V Battery Energy Storage Station

,

Battery Energy Storage Station 16S200A

Material:
Aluminum Alloy
Storage Temperature:
-20℃~+50℃
Product Name:
Wall Mounted Battery Storage
Life Cycle:
Over 6000 Times
Size:
Customizable
Capacity:
Customizable
Color:
Black
Application:
Wall Mounted
Material:
Aluminum Alloy
Storage Temperature:
-20℃~+50℃
Product Name:
Wall Mounted Battery Storage
Life Cycle:
Over 6000 Times
Size:
Customizable
Capacity:
Customizable
Color:
Black
Application:
Wall Mounted
Description

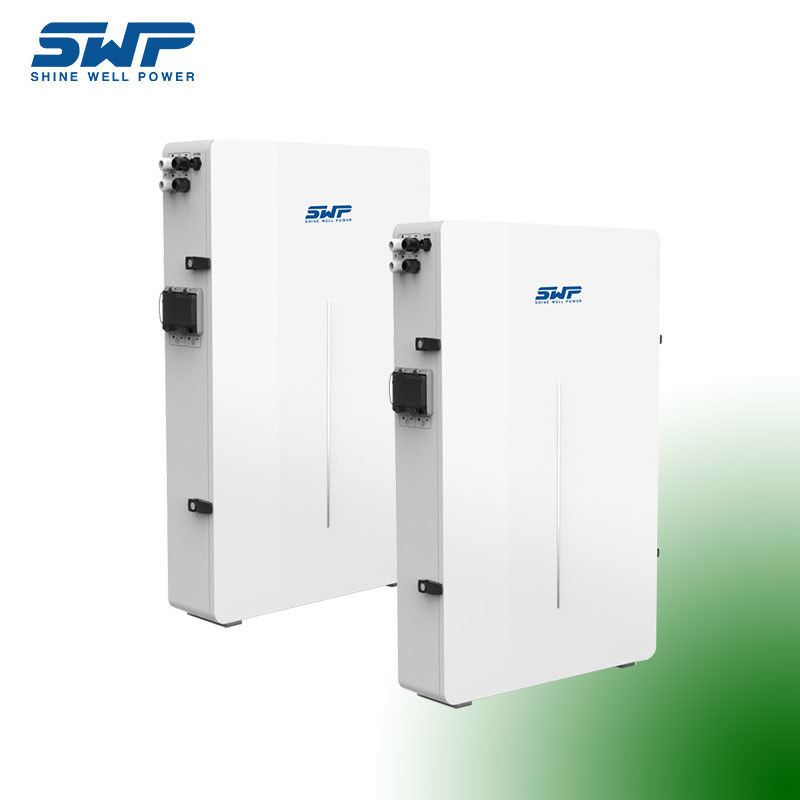

51.2V 200Ah Battery Energy Storage Station 16S200A BMS Commercial

51.2V 200Ah Customizable Battery Energy Storage Station for Commercial Applications A Grade LiFePO4 cells

Product Description:

The Wall Mounted Battery Storage is a reliable and cost-effective household battery pack and home battery storage system designed for energy storage. With a life cycle of over 6000 times, a 5-year warranty, and customizable capacity and size, it is ideal for energy storage applications. It also features a wide temperature range of -20℃~+50℃, allowing for extended use in a variety of environments. Built with the highest quality energy storage lithium battery, the Wall Mounted Battery Storage can provide long-lasting and reliable power supply for your home.

SWP51200-PW Home Energy Storage System
Electrical specifications Nominal Voltage 51.2V
Nominal Capacity 200Ah
Parallel Connection Max. 16 units
BMS 16S200A
Circuit Protection Over charge, Over discharge, Over current, Over temp, Short, Balance
Communication RS232 RS485 and CAN
Cycle Life 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD
Self Discharge Less than 3% per month
Charge Efficiency 100% @ 0.2C
Discharge Efficiency 98%-100% @ 1C
Charge Specifications Charge Voltage 57.6V±0.8V
Standard Current 100A
Fast Current 200A
Discharge Specifications Standard Current 200A
Max.Con.Discharge 300A
Cut-Of Voltage 40±0.2V
Mechanical Specifications Dimension (mm) Customized
Approx Weight (KG) 90
Terminal Type KT8-10-2P Fence terminal 0r Plug-in terminal
Cases Color/Material Black / Siliver / White Metal Cases
Cells Type EVE 3.2V100Ah
Temperature Specifications Charge Temp 0℃-55℃ (32℉-131℉)
Discharge Temp -20℃-60℃ (-4℉-140℉)
Storage Temp -20℃-45℃ (-4℉-113℉)
Battery Type LiFePO4
Cycle The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5~1h; discharge according to the standard, put it aside for 0.5~1h, count as 1 cycle).
Certificate UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell)
After-sales service period 5 Years
Estimate useful life ≥10 Years
With Display No

Features:

  • Product Name: Wall Mounted Battery Storage
  • Voltage: Customizable
  • Color: Black
  • Installation: Easy Installation
  • Life Cycle: Over 6000 Times
  • Special Feature: Home Energy Battery Storage, Home Solar Battery Storage, Energy Storage System Battery


Technical Parameters:

Product Name Technical Parameters
Wall Mounted Battery Storage Storage Temperature: -20℃~+50℃
Life Cycle: Over 6000 Times
Capacity: Customizable
Mounting Method: Wall Mounted
Material: Aluminum Alloy
Working Temperature: -20℃~+50℃
Size: Customizable
Installation: Easy Installation
Application: Outdoor


Applications:

SWP is a leading brand in battery energy storage station, household battery pack, and home solar battery storage. Our model SWP-48100WP is a wall mounted battery storage device that is designed to be used outdoors. The device is made of quality materials and is IP65 certified, ensuring protection from dust and water. It has a wide operating temperature range of -20℃~+50℃ and is customizable with the voltage of your choice. And it features a 5-year warranty for your peace of mind.

51.2V 200Ah Battery Energy Storage Station 16S200A BMS Commercial 0

Customization:

Customized Wall Mounted Battery Storage

SWP is a professional manufacturer of wall mounted battery storage systems. Our product, SWP-48200PW, is a home solar battery storage system, battery energy storage station, and home battery storage system.

The mounting method is wall mounted and the working temperature is -20℃~+50℃. Our wall mounted battery storage is made of high quality aluminum alloy and capacity is customizable.



Support and Services:

Wall Mounted Battery Storage Technical Support and Service

We provide technical support and service for our Wall Mounted Battery Storage product. Our team of experienced technicians are available to assist you with any questions or concerns you may have.

Our technical support team is available 24/7 to answer any questions or concerns you may have throughout the lifecycle of your Wall Mounted Battery Storage product. Our team is dedicated to providing the best service possible to ensure your product is running at its optimal level.

If you encounter any issues with your product, our team will be able to provide troubleshooting advice and guidance to help you resolve the issue. If the issue persists, our team is available to provide on-site repair service if needed.

We also offer a warranty on our Wall Mounted Battery Storage product. The warranty covers the repair or replacement of any parts found to be defective within the warranty period.

If you have any further questions or concerns regarding our Wall Mounted Battery Storage product, please do not hesitate to contact our technical support team.

51.2V 200Ah Battery Energy Storage Station 16S200A BMS Commercial 1



Packing and Shipping:



Packaging and Shipping for Wall Mounted Battery Storage

The Wall Mounted Battery Storage is packaged and shipped in a secure container and is designed to protect the product from any damage during shipping. It is delivered in one box containing the battery storage and all its necessary components. The box is labelled with all the necessary information for the customer.

The box is designed to fit the product securely and protect it from any impact during the shipping process. It is then sealed with shrink wrap to ensure the product is secure. The box is also padded with additional cushioning material to provide extra protection.

The box is then placed into a larger shipping box and is sent via a trusted shipping service. The delivery process is tracked and monitored to ensure the product arrives safely and efficiently.

51.2V 200Ah Battery Energy Storage Station 16S200A BMS Commercial 2



FAQ:



Q1: What is SWP brand's Wall Mounted Battery Storage?

A1: SWP brand's Wall Mounted Battery Storage (Model Number: SWP-48200PW) is a professional storage system designed and manufactured by SWP, a China-based company. This storage system is perfect for charging and storing batteries and can be wall-mounted to save space.

Q2: What is the capacity of SWP-48200PW Wall Mounted Battery Storage?

A2: The SWP-48100WP Wall Mounted Battery Storage has a capacity of 48V/200Ah.

Q3: What types of batteries can be stored in the SWP-48200PW Wall Mounted Battery Storage?

A3: The SWP-48200PW Wall Mounted Battery Storage can store lead-acid, lithium-ion, Ni-MH, and Ni-Cd batteries.

Q4: What are the safety features of SWP-48200PW Wall Mounted Battery Storage?

A4: The SWP-48200PW Wall Mounted Battery Storage comes with built-in safety features such as overcharge protection, short-circuit protection, and temperature protection.

Q5: How long is the warranty period for the SWP-48200PW Wall Mounted Battery Storage?

A5: The SWP-48200PW Wall Mounted Battery Storage comes with a one-year warranty period.
