Product Description:

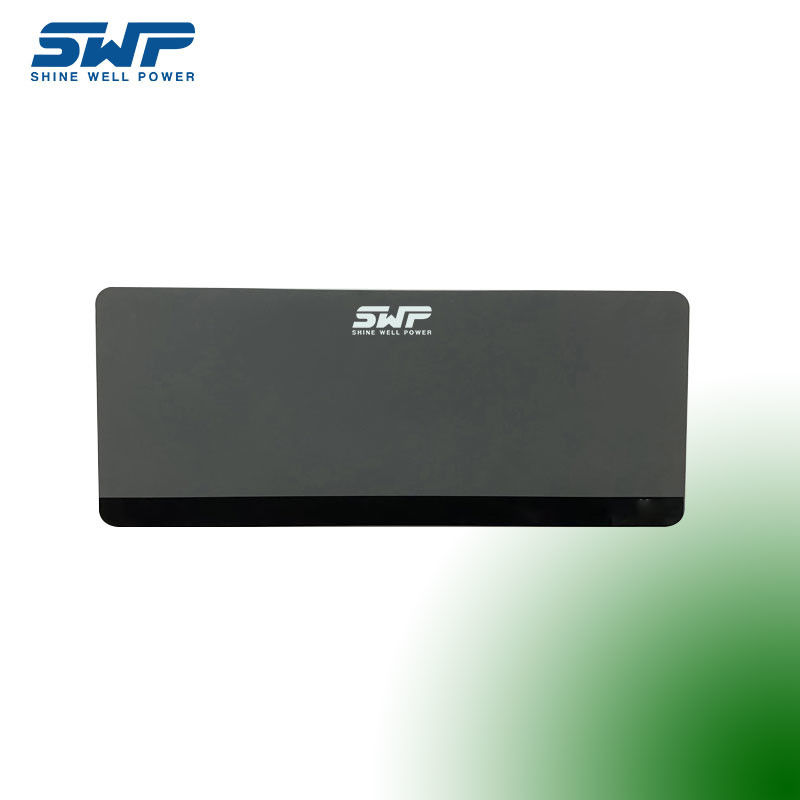

Wall Mounted Battery Storage is an ideal home energy storage system for residential, commercial and industrial applications. It consists of a high-quality aluminum alloy casing with an IP65 protection level, which allows it to withstand harsh weather conditions and temperatures ranging from -20℃ to +50℃. The power wall energy system is easy to install, and it is designed in a sleek black color to match any home décor. The wall mounted battery storage is powered by a LiFePO4 battery which is capable of providing long-term, reliable energy storage. This system is the best solution for any home energy storage needs and is an excellent investment for the future.
| SWP51130-PW Power Wall Energy Storage System |
| Electrical specifications |
Nominal Voltage |
51.2V |
| Nominal Capacity |
130Ah |
| Parallel Connection |
Max. 16 units |
| BMS |
16S100A |
| Circuit Protection |
Over charge, Over discharge, Over current, Over temp, Short, Balance |
| Communication |
RS232 RS485 and CAN |
| Cycle Life |
4000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge |
Less than 3% per month |
| Charge Efficiency |
100% @ 0.2C |
| Discharge Efficiency |
98%-100% @ 1C |
| Charge Specifications |
Charge Voltage |
57.6V±0.8V |
| Standard Current |
50A |
| Fast Current |
100A |
| Discharge Specifications |
Standard Current |
100A |
| Max.Con.Discharge |
200A |
| Cut-Of Voltage |
40±0.2V |
| Mechanical Specifications |
Dimension (mm) |
118*442*1120 |
| Approx Weight (KG) |
50 |
| Terminal Type |
KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material |
Black / Siliver / White Metal Cases |
| Cells Type |
EVE 3.2V130Ah |
| Temperature Specifications |
Charge Temp |
0℃-55℃ (32℉-131℉) |
| Discharge Temp |
-20℃-60℃ (-4℉-140℉) |
| Storage Temp |
-20℃-45℃ (-4℉-113℉) |
| Battery Type |
LiFePO4 |
| Cycle |
The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate |
UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) |
| After-sales service period |
5 Years |
| Estimate useful life |
≥10 Years |
| With Display |
No |
Features:
- Product Name: Wall Mounted Battery Storage
- Application: Outdoor
- Voltage: Customizable
- Life Cycle: Over 6000 Times
- Material: Mental
- LiFePO4 battery: Yes
- Power wall storage system: Yes
- Wall mounted energy storage system: Yes
Technical Parameters:
| Parameter |
Details |
| Product Name |
Wall Mounted Battery Storage |
| Voltage |
Customizable |
| Color |
Grey |
| Installation |
Easy Installation |
| Size |
Customizable |
| Capacity |
Customizable |
| Material |
Aluminum Alloy |
| Storage Temperature |
-20℃~+50℃ |
| Protection Level |
IP65 |
| Working Temperature |
-20℃~+50℃ |
| Application |
Power Wall Battery, Wall Mounted Battery, Home Energy Storage System |
Applications:
- SWP SWP-48130PW Wall Mounted Battery Storage System is a perfect solution for home energy storage system. It is designed to be wall mounted, providing an efficient and reliable way to store energy for renewable energy storage, solar energy storage, and off-grid energy storage.
- This storage system is made of high quality aluminum alloy, featuring an IP65 protection level and a 5-year warranty for reliable performance and longevity. It is also customizable, allowing you to choose the capacity that best meets your needs.
- The wall mounted battery storage system is designed to be easy to install and use. It can be quickly and easily mounted to a wall, without requiring any additional tools or special skills. With its energy efficient design, it can help you save money on energy bills.
- This storage system is an ideal choice for both residential and commercial applications. It can be used to store and manage energy in a variety of environments, such as homes, offices, factories, and more.
Customization:
SWP Wall Mounted Battery Storage System
- Brand Name: SWP
- Model Number: SWP-48100RM
- Place of Origin: China
- Color: Black
- Protection Level: IP65
- Size: Customizable
- Working Temperature: -20℃~+50℃
- Application: Outdoor
Features: Solar Energy Storage System, Power Wall Energy System, Home Energy Storage System
Support and Services:
Wall Mounted Battery Storage Technical Support & Service
Our Wall Mounted Battery Storage products are backed by comprehensive technical support and service. We are dedicated to providing you with a range of support options to ensure you get the most out of your purchase.
Technical Support
Our technical support team is available to answer any questions you may have about your Wall Mounted Battery Storage product. Whether it's installation, maintenance, or troubleshooting, our experienced technicians are here to help.
Customer Service
We also provide a comprehensive customer service to help you with any issues you may have. Our customer service representatives will answer any questions you may have and provide assistance with product ordering, shipping, returns, and more.
Warranty
We offer a one-year limited warranty on our Wall Mounted Battery Storage products, covering any defects in materials and workmanship. We stand behind our products and are committed to providing the highest levels of customer service and satisfaction.
Packing and Shipping:
Packaging and Shipping for Wall Mounted Battery Storage
The Wall Mounted Battery Storage is packaged and shipped with the following specifications:
- The product is packaged in a cardboard box.
- The box is secured with a plastic wrap.
- The box is marked with a shipping label.
- The box is shipped via courier to the customer.
FAQ:
Q&A about SWP-48100RM Wall Mounted Battery Storage
- Q: What brand is this Wall Mounted Battery Storage?
A: This Wall Mounted Battery Storage is from SWP, the brand name is SWP.
- Q: What is the model number of this Wall Mounted Battery Storage?
A: The model number of this Wall Mounted Battery Storage is SWP-48130PW.
- Q: Where is this Wall Mounted Battery Storage made?
A: This Wall Mounted Battery Storage is made in China.
- Q: Is this Wall Mounted Battery Storage safe to use?
A: Yes, this Wall Mounted Battery Storage is designed and produced with safety in mind.
- Q: What is the capacity of this Wall Mounted Battery Storage?
A: This Wall Mounted Battery Storage has a capacity of 130 Ah.
