Highlight:
8000 Cycle Wall Mounted Battery Storage
, 5000 Cycle Wall Mounted Battery Storage
, 5000 Cycle residential energy storage

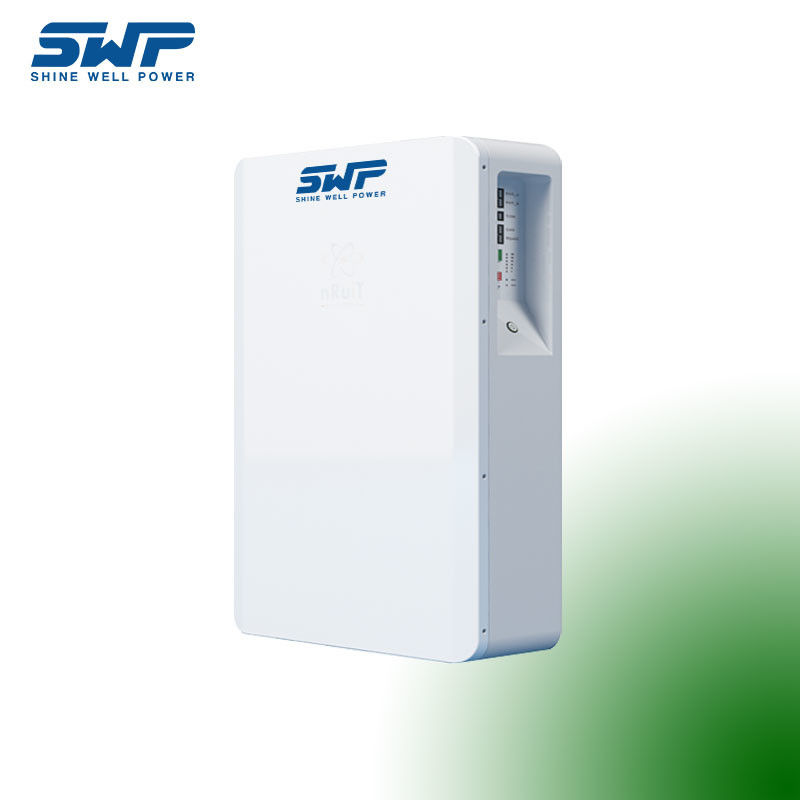

5000-8000 Cycle Life Wall Mounted Battery Storage Residential Commercial
5000-8000 Cycle Life Ho Energy Storage System with Reliable Battery Management System
Product Description:
The Home Battery Energy Storage System is an advanced and reliable energy storage solution designed to provide efficient and secure energy storage to residential, commercial and industrial applications. This system is equipped with a wall-mounted or floor-mounted installation method, providing a safe and secure connection to the power grid. Additionally, the system is equipped with safety protection measures, such as overcharge, overdischarge, overcurrent protection, short circuit and temperature protection, to ensure the system is working safely and efficiently.
The Home Battery Energy Storage System also features a sophisticated battery management system, which helps to monitor and optimize the system’s performance. With a capacity of up to 20kWh, this system is able to meet the needs of residential, commercial and industrial applications, making it the ultimate energy storage solution for homes and businesses.
The Home Battery Energy Storage System is the perfect solution for those looking to maximize their energy savings and take advantage of the most advanced and reliable home energy storage system available. With its robust and reliable design, this system is sure to provide the highest levels of performance and security.
| SWP51200-PW Wall Mounted Battery System |
| Electrical specifications |
Nominal Voltage |
51.2V |
| Nominal Capacity |
200Ah |
| Parallel Connection |
Max. 16 units |
| BMS |
16S200A |
| Circuit Protection |
Over charge, Over discharge, Over current, Over temp, Short, Balance |
| Communication |
RS232 RS485 and CAN |
| Cycle Life |
3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge |
Less than 3% per month |
| Charge Efficiency |
100% @ 0.2C |
| Discharge Efficiency |
98%-100% @ 1C |
| Charge Specifications |
Charge Voltage |
57.6V±0.8V |
| Standard Current |
100A |
| Fast Current |
200A |
| Discharge Specifications |
Standard Current |
200A |
| Max.Con.Discharge |
300A |
| Cut-Of Voltage |
40±0.2V |
| Mechanical Specifications |
Dimension (mm) |
Customized |
| Approx Weight (KG) |
90 |
| Terminal Type |
KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material |
Black / Siliver / White Metal Cases |
| Cells Type |
EVE 3.2V100Ah |
| Temperature Specifications |
Charge Temp |
0℃-55℃ (32℉-131℉) |
| Discharge Temp |
-20℃-60℃ (-4℉-140℉) |
| Storage Temp |
-20℃-45℃ (-4℉-113℉) |
| Battery Type |
LiFePO4 |
| Cycle |
The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate |
UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) |
| After-sales service period |
5 Years |
| Estimate useful life |
≥10 Years |
| With Display |
No |
Features:
- Product Name: Home Battery Energy Storage System
- HV battery pack: Yes
- Energy storage battery: Yes
- House energy storage system: Yes
- Communication Interface: RS232,RS485, CAN
- Battery Management System: Yes
- Warranty: 5years
- Compatible Inverter: Yes
- Voltage: 51.2V
Technical Parameters:
| Parameter |
Value |
| Installation Method |
Wall-mounted, Floor-mounted |
| Communication Interface |
RS232, RS485, CAN |
| Battery Management System |
Yes |
| Compatible Inverter |
Yes |
| Safety Protection |
Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection |
| Power |
3-10kW |
| Voltage |
51.2V |
| Operating Temperature |
-20℃~50℃ |
| Cycle Life |
5000-8000 |
| Capacity |
5-20kWh |
Applications:
Introducing theSWP-48100RM Home Battery Energy Storage System
Designed to provide a residential or commercial energy storage solution, the SWP-48100RM Home Battery Energy Storage System is a wall-mounted battery with an operating temperature of -20℃ to 50℃. Its capacity ranges from 5-20kWh, and its voltage is 51.2V. The system also comes with RS232, RS485 and CAN communication interfaces.
Ideal for home energy storage, the SWP-48100RM is the perfect choice for those looking to make their home energy efficient. The system is easy to install, requires minimal maintenance, and is extremely reliable. With its advanced communication interfaces, the SWP-48100RM can be connected to various other energy sources, giving users the flexibility to maximize their energy usage.
The SWP-48100RM Home Battery Energy Storage System is perfect for both residential and commercial applications. With its advanced features, it can be used to store energy for future use, providing a reliable and cost-effective energy storage solution.
Customization:
SWP Home Battery Energy Storage System is a wall mounted battery that offers a reliable and efficient commercial energy system. It comes with a Model Number of SWP-48100RM and is made in China. It's equipped with an advanced battery management system and provides a power of 3-10kW. It has a cycle life of 5000-8000 and a 5-year warranty. It is also compatible with various inverters. This home energy storage system is ideal for any residential and commercial use.
Support and Services:
Technical Support & Service for Home Battery Energy Storage System
We are dedicated to providing the highest level of technical support and customer service for our Home Battery Energy Storage System. We have a team of highly experienced engineers who are available to answer any of your questions or provide support for any technical issues you may experience.
We offer 24/7 technical support and can be contacted via phone, email, or online chat. Our team is available to provide advice and guidance on installation, troubleshooting, and maintenance. We also offer a comprehensive warranty program to protect your investment.
We have an extensive online knowledge base with detailed tutorials, FAQs, and product manuals. We also provide a wide range of online resources such as video tutorials, webinars, and user forums.
If you require further assistance, please do not hesitate to contact us. We look forward to providing you with the best support and service for your Home Battery Energy Storage System.
Packing and Shipping:
Home Battery Energy Storage System is shipped in a secure, tamper-proof package to ensure that the product is safe and secure during transit. The packaging is designed to protect against moisture, shock, and other environmental factors. The package also includes all necessary installation and user manuals.
The product is shipped via ground or air freight. The shipping cost is calculated based on the weight, size, and destination of the package. The freight company is responsible for ensuring that the package arrives safely and on time.
FAQ:
- Q: What is the brand name of this Home Battery Energy Storage System?
- A: The brand name is SWP.
- Q: What is the model number of this Home Battery Energy Storage System?
- A: The model number is SWP-48100RM.
- Q: Where is this Home Battery Energy Storage System made?
- A: This Home Battery Energy Storage System is made in China.
- Q: What is the capacity of this Home Battery Energy Storage System?
- A: The capacity of this Home Battery Energy Storage System is 48100Wh.
- Q: What is the voltage of this Home Battery Energy Storage System?
- A: The voltage of this Home Battery Energy Storage System is DC 48V.
