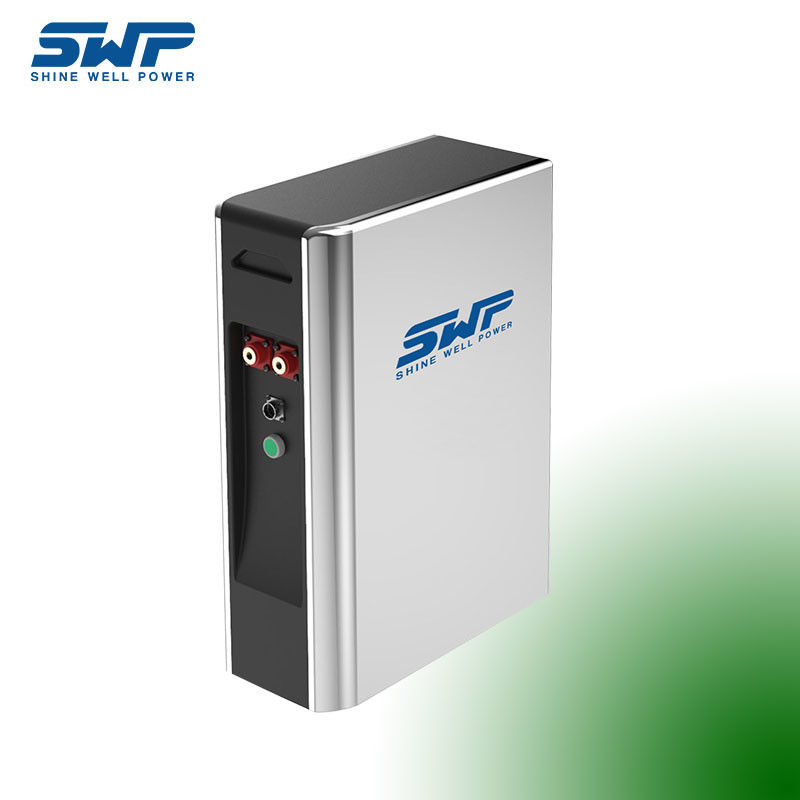

Energy-efficient Home Battery Energy Storage System Short Circuit Protection -20C-50C
Product Description:
The home battery energy storage system is a HV battery pack designed to store energy in a home setting. It provides a storage system battery with a voltage of 51.2V and a capacity of 5-20kWh. The communication interface of the system includes RS232, RS485 and CAN, allowing it to easily connect to other devices. It also has temperature protection features to ensure the safety of the system, with an operating temperature of -20℃ to 50℃ and safety protections such as overcharge, overdischarge, overcurrent and short circuit protection. This storage system is an ideal solution for home energy storage, ensuring reliable, efficient and safe energy storage.
| SWP51200-PW Power Wall battery System |
| Electrical specifications |
Nominal Voltage |
51.2V |
| Nominal Capacity |
100Ah |
| Parallel Connection |
Max. 16 units |
| BMS |
16S100A |
| Circuit Protection |
Over charge, Over discharge, Over current, Over temp, Short, Balance |
| Communication |
RS232 RS485 and CAN |
| Cycle Life |
3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge |
Less than 3% per month |
| Charge Efficiency |
100% @ 0.2C |
| Discharge Efficiency |
98%-100% @ 1C |
| Charge Specifications |
Charge Voltage |
57.6V±0.8V |
| Standard Current |
50A |
| Fast Current |
100A |
| Discharge Specifications |
Standard Current |
100A |
| Max.Con.Discharge |
200A |
| Cut-Of Voltage |
40±0.2V |
| Mechanical Specifications |
Dimension (mm) |
Customized |
| Approx Weight (KG) |
50 |
| Terminal Type |
KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material |
Black / Siliver / White Metal Cases |
| Cells Type |
EVE 3.2V100Ah |
| Temperature Specifications |
Charge Temp |
0℃-55℃ (32℉-131℉) |
| Discharge Temp |
-20℃-60℃ (-4℉-140℉) |
| Storage Temp |
-20℃-45℃ (-4℉-113℉) |
| Battery Type |
LiFePO4 |
| Cycle |
The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate |
UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) |
| After-sales service period |
5 Years |
| Estimate useful life |
≥10 Years |
| With Display |
No |
Features:
- Product Name: Home Battery Energy Storage System
- Power Wall Battery: Yes
- Storage System Battery: Yes
- Energy Storage System Battery: Yes
- Safety Protection: Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection
- Warranty: 5years
- Operating Temperature: -20℃~50℃
- Remote Monitoring System: Yes
- Communication Interface: RS232,RS485, CAN
Technical Parameters:
| Parameter |
Value |
| Product Name |
Home Battery Energy Storage System |
| Voltage |
51.2V |
| Cycle Life |
5000-8000 |
| Power |
3-10kW |
| Compatible Inverter |
Yes |
| Battery Management System |
Yes |
| Capacity |
5-20kWh |
| Safety Protection |
Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection |
| Operating Temperature |
-20℃~50℃ |
| Application |
Residential, Commercial |
| Remote Monitoring System |
Yes |
Applications:
The SWP-48100RM Home Battery Energy Storage System is a high-quality HV battery pack designed for use in home energy storage applications. Made in China, this energy storage system battery offers reliable performance and is equipped with RS232, RS485, and CAN communication interfaces. It offers a voltage of 51.2V and an operating temperature range of -20℃ to 50℃. The system also comes with multiple safety protections, including overcharge, overdischarge, overcurrent, short circuit, and temperature protection, to ensure reliable operation and protect the battery from damage. Additionally, the system features a remote monitoring system to enable users to monitor and control the energy storage system from anywhere. This home battery storage system is perfect for homeowners who want to reduce their energy bills and become more eco-friendly.
Customization:
SWP Home Battery Energy Storage System
- Brand Name: SWP
- Model Number: SWP-48100RM
- Place of Origin: China
- Capacity: 5-20kWh
- Operating Temperature: -20℃~50℃
- Installation Method: Wall-mounted, Floor-mounted
- Compatible Inverter: Yes
- Power: 3-10kW
Experience the Benefits of a Home Battery Energy Storage System
SWP's Home Battery Energy Storage System is perfect for your energy storage needs. With Salor Battery Storage System, you can store energy for later use and enjoy a variety of benefits including:
- Reduced electricity bills
- Increased energy independence
- Protection against power outages
- Greater energy efficiency
Choose SWP's Home Energy Storage System today and start saving money while taking control of your energy needs.
Support and Services:
Home Battery Energy Storage System Technical Support and Service
We offer technical support and service for our Home Battery Energy Storage System, designed to maximize the efficiency and reliability of your home energy storage solution.
Our technical support team is available 24/7 to answer any questions you may have about using or troubleshooting your Home Battery Energy Storage System. Our knowledgeable and friendly staff is here to help you make the most of your energy storage system.
We also offer a variety of services for your Home Battery Energy Storage System, including installation, maintenance, troubleshooting, and repair. Our experienced technicians can help you install and configure the system, maintain it for optimal performance, and troubleshoot any issues that may arise.
If you need assistance with your Home Battery Energy Storage System, please contact us and our team will be happy to provide the support you need.
Packing and Shipping:
Packaging and Shipping of Home Battery Energy Storage System
The Home Battery Energy Storage System is packaged with all components necessary for installation, including a mounting bracket and hardware. All components are securely packaged in a single box.
This product is shipped with reliable third-party carriers, including UPS, FedEx, and DHL. We guarantee that the product will arrive in perfect condition and on time.
