Highlight:
IEC62619 Power Wall Battery
, Power Wall Battery Homes
, powerwalls for homes Deep Cycle

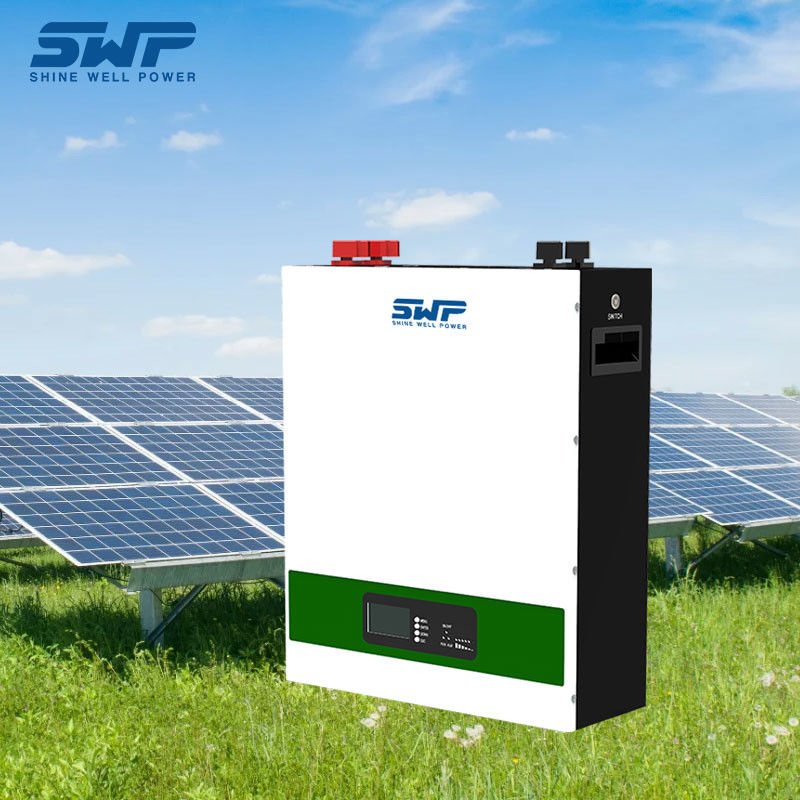

IEC62619 Power Wall Battery for homes deep cycle backup power solutions
51.2V100Ah power wall energy storage systerm with screen smore safe and long cycles 100A discharge current LFP battery
1.PRODUCT OVERVIEW :
SWP wall mount battery packs are highly integrated, deep cycle backup power solutions for your solar home energy storage system. They store your solar energy for backup protection when the grid goes down. When your system detects outages, they can power your home with backup energy and automatically recharges with sunlight to keep your appliances running for days.
Enjoy intelligent air-cooling for quick heat dissipation, ensuring safe and stable operation. Expandable up to 16 packs in parallel for greater capacity. We offer customizable photovoltaic energy storage systems. Trust SWP, a reputable Powerwall factory, eager to collaborate with you.
| SWP51100-PW Power Wall Energy Storage System |
| Electrical specifications |
Nominal Voltage |
51.2V |
| Nominal Capacity |
100Ah |
| Parallel Connection |
Max. 16 units |
| BMS |
16S100A |
| Circuit Protection |
Over charge, Over discharge, Over current, Over temp, Short, Balance |
| Communication |
RS232 RS485 and CAN |
| Cycle Life |
3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge |
Less than 3% per month |
| Charge Efficiency |
100% @ 0.2C |
| Discharge Efficiency |
98%-100% @ 1C |
| Charge Specifications |
Charge Voltage |
57.6V±0.8V |
| Standard Current |
50A |
| Fast Current |
100A |
| Discharge Specifications |
Standard Current |
100A |
| Max.Con.Discharge |
200A |
| Cut-Of Voltage |
40±0.2V |
| Mechanical Specifications |
Dimension (mm) |
Customized |
| Approx Weight (KG) |
50 |
| Terminal Type |
KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material |
Black / Siliver / White Metal Cases |
| Cells Type |
EVE 3.2V100Ah |
| Temperature Specifications |
Charge Temp |
0℃-55℃ (32℉-131℉) |
| Discharge Temp |
-20℃-60℃ (-4℉-140℉) |
| Storage Temp |
-20℃-45℃ (-4℉-113℉) |
| Battery Type |
LiFePO4 |
| Cycle |
The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate |
UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) |
| After-sales service period |
5 Years |
| Estimate useful life |
≥10 Years |
| With Display |
No |
2.CELLS INTRODUCTION :
As a professional battery manufacturer, we will only cooperate with high-quality battery cell manufacturers and only purchase A-grade cells for battery pack assembly.
A-grade battery cells have sufficient capacity, good consistency, small self-discharge, and high safety. The battery packs assembled with such cells is safe and reliable, which have a long service life and have extremely low after-sales chances.
A-grade battery cell manufacturers will also provide a unique bar-code which is the basis for verifying whether the battery cell is a grade-A battery cell.
In order to ensure customers can use our products with confidence, we will provide customers with the battery traceability QR codes. By scanning the QR code, customers can know the bar-code of each cell inside our battery pack, and then by querying the bar-code of each cell to know the important parameters such as voltage, internal resistance, and capacity when each cell leaves the factory.
At present, our battery cell suppliers include BYD, CATL, EVE, Gotion high-tech and other well-known manufacturers.
3.BMS INTRODUCTION :
The high-performance BMS effectively monitors the battery status to ensure safe and efficient operation of the battery, prevents the battery from overcharging, over-discharging, over-current, overheating, etc., and avoids potential safety hazards!
SWP has a professional BMS R&D team to develop and design BMS, also cooperates with well-known BMS brands in the market. All core components are imported and have stable performance.
The BMS can match the basic communication interfaces like RS232, RS485, Can-bus, etc., and can communicate with most inverters on the market,such as Deye, Goodwe, Growatt, Voltronic Power, Pylontech, etc. Even if the customer uses a niche brand inverter, we can custom-design the BMS to ensure barrier-free connection between the battery and the inverter.
In addition, we can also add Bluetooth, heating, mobile App status monitoring and other functions according to customer requirements to increase customers' good experience during use.
4.FEATURES :
Our LiFePO4 Battery with High Performance BMS packs a punch when it comes to features. Here are some of the standout features of this battery:
✔ Long Lifespan
Our LiFePO4 Battery is built with longevity in mind. It can last for up to 10 years, which is twice the lifespan of a lead-acid battery. This means you won't have to replace your battery for a long time, saving you both time and money in the long run.
✔ High Energy Density
The LiFePO4 Battery is designed to deliver high energy density, making it an ideal choice for applications where high performance is required. It can store more energy per unit of weight and volume than traditional batteries. This means you'll get more power out of a smaller and lighter battery, making it perfect for electric vehicles and portable devices.
✔ High Performance BMS
The High Performance BMS ensures that the battery operates efficiently and safely. It monitors the state of the battery and prevents it from overcharging or over-discharging, which can damage the battery. It also protects the battery from short circuits and other types of failures.
✔ Wide Temperature Range
Our LiFePO4 Battery is designed to operate in a wide temperature range, from -20°C to 60°C. This makes it suitable for use in both hot and cold environments.
✔ Fast Charging
Our LiFePO4 Battery can be charged quickly, regardless of the charging rate. This is a big advantage for users who need their battery to be fully charged and ready to go in a short amount of time.
5.OUR ADANVATGES :
✔ REPLY--- Quick response to client’s enquirers within 1 hour.
✔ EXPERIENCE---15 years experience in producing battery products for various applications.
✔ QUALITY CONTROL——more than 15 production processes and more than 7 quality inspections to ensure stable quality and high reliability.
✔ ODM&OEM ---Strong R&D capability OEM &ODM service.
✔ COOPERATION---Value quality and long-term cooperation to reach win-win relationship.
6.BATTERY APPLICATION :
Solar Energy System, solar battery storage system, home energy storage system, energy storage system battery, home storage battery.
7.PRODUCTION SCENE :
Our company has a 6,000 square meter production workshop, 2 professional battery pack production lines, with an annual production of 150,000 sts energy storage battery packs. Automatic battery sorting machines, high-power laser welding machines, semi-finished battery testers, finished battery testers, finished battery aging testers and other equipment are available.
8.WHY IS SWP?
✔ Assist you to get success
as we know if we want to get success, we have to help our customers to get success first, all our business is based on the business of our customers. So what we do and what we think focus on how to assist you to get more business.
✔ Professional service to you
Our battery experts with 15+ years experiences in Lithium battery industry can understand your applications well and recommend you the most suitable power solutions. Excellent customer service from enquiry to delivery and everything in-between with outstanding after-sale support and the best replacement warranty on batteries.
✔ Strictly implement MUTUAL NON-DISCLOSURE AGREEMENT (NDA)
We attach great importance to protecting customers’ information happened in cooperation. Never Disclose any information to the third party without customers’ agreement. This is our operation principle.
REMARK:
Customized battery products, all standards shall be subject to the official business specifications.
