Product Details
Place of Origin: China
Brand Name: SWP
Model Number: SWP-48100RM
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD880.00/PCS
Packaging Details: carton or wooden packing
Delivery Time: 25 WORK DAYS
Payment Terms: T/T, L/C
Cycle Life: |
5000-8000 |
Warranty: |
5years |
Operating Temperature: |
-20℃~50℃ |
Compatible Inverter: |
Yes |
Capacity: |
5-20kWh |
Voltage: |
51.2V |
Power: |
3-10kW |
Installation Method: |
Wall-mounted, Floor-mounted |
Cycle Life: |
5000-8000 |
Warranty: |
5years |
Operating Temperature: |
-20℃~50℃ |
Compatible Inverter: |
Yes |
Capacity: |
5-20kWh |
Voltage: |
51.2V |
Power: |
3-10kW |
Installation Method: |
Wall-mounted, Floor-mounted |
Advanced and Remote-Monitored Home Energy Storage System with -20C-50C Temperature Range
Product Description:
The Home Battery Energy Storage System is a reliable and efficient storage system battery, designed to provide homeowners with a secure and stable power source for their home energy needs. With a capacity of 5-20kWh, this house energy storage system is wall-mounted or floor-mounted and is designed to provide a voltage of 51.2V. It also features a remote monitoring system, allowing you to keep track of your power usage and ensure that your energy needs are met. This system is backed by a 5-year warranty, giving you peace of mind and assurance that your home energy storage system is safe and reliable.
| SWP48100-RM Home Energy Storage battery | ||
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah | |
| Parallel Connection | Max. 16 units | |
| BMS | 16S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | RS232 RS485 and CAN | |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100% @ 0.2C | |
| Discharge Efficiency | 98%-100% @ 1C | |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 50A | |
| Fast Current | 100A | |
| Discharge Specifications | Standard Current | 100A |
| Max.Con.Discharge | 200A | |
| Cut-Of Voltage | 40±0.2V | |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 48 | |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal | |
| Cases Color/Material | Black Metal Cases | |
| Cells Type | EVE 3.2V100Ah | |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) | |
| Storage Temp | -20℃-45℃ (-4℉-113℉) | |
| Battery Type | LiFePO4 | |
| Cycle | The cycle life shall not be less than 2000 times when DOD is 100%. The cycle life shall not be less than 4000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
|
| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) | |
| After-sales service period | 5 Years | |
| Estimate useful life | ≥10 Years | |
| With Display | No | |
Features:
1.Product Name: Home Battery Energy Storage System
2.Warranty: 5years
3.Application: Residential, Commercial
4.Battery Management System: Yes
5.Power: 3-10kW
6.Communication Interface: RS232,RS485, CAN
Technical Parameters:
| Parameter | Value |
|---|---|
| Voltage | 48V |
| Compatible Inverter | Yes |
| Installation Method | Wall-mounted, Floor-mounted |
| Capacity | 5-20kWh |
| Warranty | 5years |
| Cycle Life | 5000-8000 |
| Remote Monitoring System | Yes |
| Operating Temperature | -20℃~50℃ |
| Battery Management System | Yes |
| Communication Interface | RS232,RS485, CAN |
SWP-48100RM Home Battery Energy Storage System is the ideal solution for residential use, especially for those who are preserving energy for their home. It is wall mounted and designed to be safe, efficient, and reliable. It is made with the highest quality components and materials, and is designed to last for a minimum of five years. SWP-48100RM Home Battery Energy Storage System is equipped with advanced safety features, such as overcharge, overdischarge, overcurrent, short circuit, and temperature protection. It also has a powerful battery management system that can monitor and optimize energy use, and it has a capacity of 5-20kWh. With its innovative design and energy-saving features, SWP-48100RM Home Battery Energy Storage System is the perfect solution for your home energy storage needs.

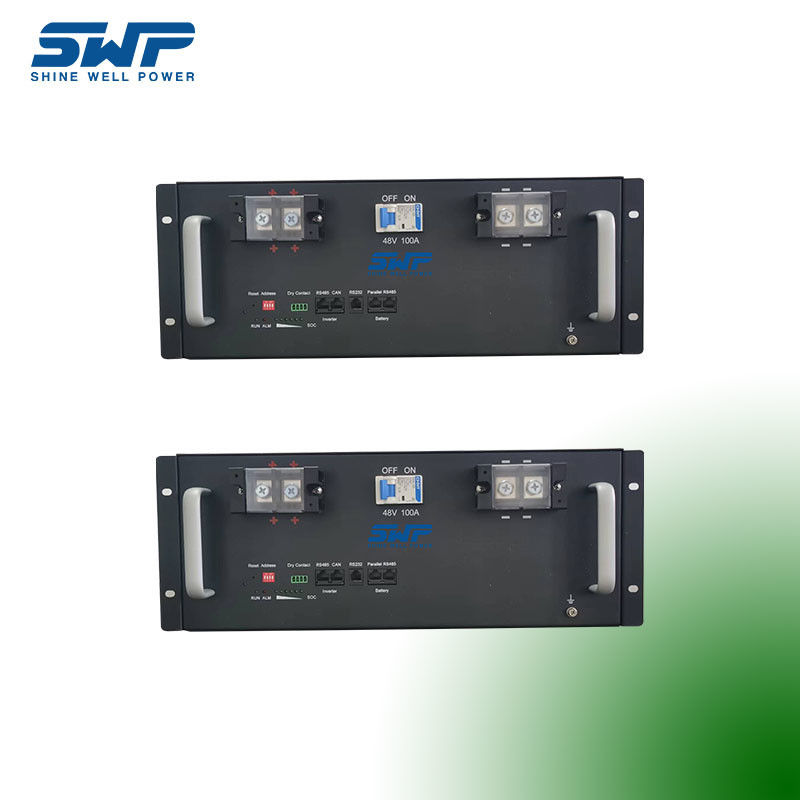

SWP Home Battery Energy Storage System
This energy storage system is ideal for residential application, with HV battery pack, wall mounted battery and house energy storage system that can meet your energy needs.
Brand Name: SWP
Model Number: SWP-48100RM
Place of Origin: China
Cycle Life: 5000-8000
Remote Monitoring System: Yes
Installation Method: Wall-mounted, Floor-mounted
Capacity: 5-20kWh
Voltage: 51.2V
We provide technical support and service for the Home Battery Energy Storage System. Our team is dedicated to providing the best customer experience, from installation to ongoing maintenance.
If you have any questions or need help with your Home Battery Energy Storage System, please don't hesitate to contact us.
Packaging and Shipping for Home Battery Energy Storage System:
The Home Battery Energy Storage System will be packaged in a box with bubble wrap to ensure that the components are safe and secure during delivery. The box will be labeled with the product name and details about the product, such as size, weight, and contents. The box will also include instructions for installation and use. The package will be shipped using a reliable and secure shipping provider, such as FedEx or UPS.
