Product Details
Place of Origin: China
Brand Name: SWP
Model Number: SWP-48100RM
Payment & Shipping Terms
Minimum Order Quantity: 200
Packaging Details: Carton Or Wooden
Delivery Time: 25
Payment Terms: T/T, L/C
Supply Ability: 500PCS/Day
Cycle Life: |
5000-8000 |
Application: |
Residential, Commercial |
Voltage: |
51.2V |
Operating Temperature: |
-20℃~50℃ |
Safety Protection: |
Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection |
Battery Management System: |
Yes |
Remote Monitoring System: |
Yes |
Capacity: |
5-20kWh |
Cycle Life: |
5000-8000 |
Application: |
Residential, Commercial |
Voltage: |
51.2V |
Operating Temperature: |
-20℃~50℃ |
Safety Protection: |
Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection |
Battery Management System: |
Yes |
Remote Monitoring System: |
Yes |
Capacity: |
5-20kWh |

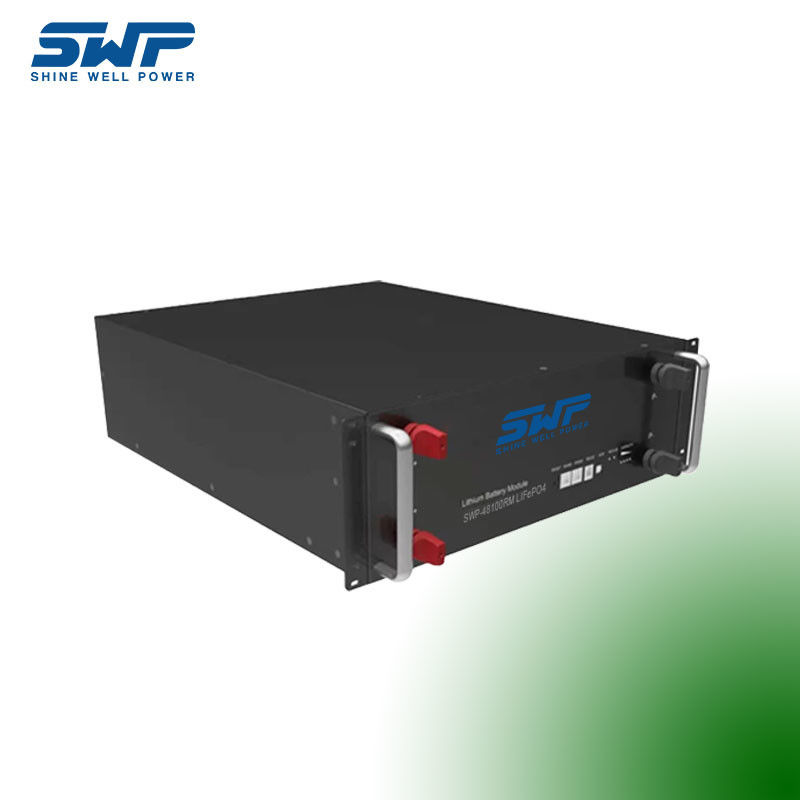

48V 100Ah home energy storage system RS485 Communication Interface Poised for Residential
The Home Battery Energy Storage System is a household energy storage solution that provides a safe, cost-effective, and reliable option for storing energy. Designed for homes and businesses, this system aims to optimize energy efficiency and reduce energy costs. It features a power output range of 5-15kW, a voltage of 48V, a Battery Management System (BMS), communication interfaces with RS232 and Ethernet, and a remote monitoring system. With its high-quality components and advanced technology, the Home Battery Energy Storage System is an ideal energy storage device for both households and businesses.
The Home Battery Energy Storage System is an intelligent energy storage solution that offers reliable backup and management options for homes and businesses. By utilizing advanced lithium-ion battery technology, the system stores excess solar energy or off-peak grid electricity for use during peak demand or nighttime.
With a power output range of 5-15kW, the system is suitable for various scales of homes and businesses. Whether it's meeting the daily electricity needs of a household or supporting commercial applications, this system provides a reliable energy supply.
The Battery Management System (BMS) is one of the core components of this system. It ensures the safe operation and optimal performance of the batteries by monitoring their status, temperature, and charge level, as well as controlling the charging and discharging processes. The BMS also incorporates intelligent features for optimized scheduling based on energy demand and peak/off-peak electricity rates, achieving the best energy utilization efficiency.
| SWP48100-RM House Energy Storage System | ||
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah | |
| Parallel Connection | Max. 16 units | |
| BMS | 16S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | RS232 RS485 and CAN | |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100% @ 0.2C | |
| Discharge Efficiency | 98%-100% @ 1C | |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 50A | |
| Fast Current | 100A | |
| Discharge Specifications | Standard Current | 100A |
| Max.Con.Discharge | 200A | |
| Cut-Of Voltage | 40±0.2V | |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 48 | |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal | |
| Cases Color/Material | Black Metal Cases | |
| Cells Type | EVE 3.2V100Ah | |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) | |
| Storage Temp | -20℃-45℃ (-4℉-113℉) | |
| Battery Type | LiFePO4 | |
| Cycle | The cycle life shall not be less than 2000 times when DOD is 100%. The cycle life shall not be less than 4000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
|
| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) | |
| After-sales service period | 5 Years | |
| Estimate useful life | ≥10 Years | |
| With Display | No | |
| Attributes | Details |
|---|---|
| Installation Method | Wall-mounted, Floor-mounted |
| Voltage | 51.2V |
| Battery Management System | Yes |
| Compatible Inverter | Yes |
| Communication Interface | RS232, RS485, CAN |
| Operating Temperature | -20℃~50℃ |
| Application | Residential, Commercial |
| Warranty | 5years |
| Cycle Life | 5000-8000 |
| Remote Monitoring System | Yes |
SWP Home Battery Energy Storage System is a reliable and efficient household energy storage system with a model number of SWP-48100RM. Made in China, this system offers a capacity of 5-20kWh and a voltage of 51.2V. It also features communication interfaces such as RS232, RS485 and CAN, as well as a battery management system, all of which make it an ideal home lithium storage battery and energy storage station. Moreover, it is designed to operate over a wide temperature range of -20℃~50℃, making it suitable for different climates.
The SWP Home Battery Energy Storage System is designed to store and manage energy from renewable sources, such as solar and wind power. It is an ideal solution for households who want to take advantage of clean energy and reduce their dependence on traditional sources of electricity. It can also provide a stable and reliable source of electricity during peak hours and times of power outages.
The SWP Home Battery Energy Storage System is an efficient and cost-effective way to maximize the use of renewable energy sources. It is a reliable and secure way to store and manage energy, providing a cost-effective solution for households to reduce their electricity bills and lower their carbon footprint.
Brand Name: SWP
Model Number: SWP-48100RM
Place of Origin: China
Remote Monitoring System: Yes
Communication Interface: RS232,RS485, CAN
Power: 3-10kW
Compatible Inverter: Yes
Operating Temperature: -20℃~50℃
Highlight Keywords: Home Energy Battery Storage, Home Energy Battery, Battery Energy Storage Station
Our Home Battery Energy Storage System is a perfect solution for home energy storage, giving you the ability to store energy and use it at your convenience. It is built with a brand name of SWP, Model Number of SWP-48100RM, and is made in China. It comes with a remote monitoring system, communication interface of RS232,RS485, CAN, and power of 3-10kW. It is compatible with inverters and is able to operate at temperatures of -20℃~50℃.
We provide customized service for Home Battery Energy Storage System, allowing you to get the perfect system for your home energy storage needs. With our system, you can trust that you will get the best in home energy storage and battery energy storage station.
Our Home Battery Energy Storage System offers our customers a variety of technical support and service options. We provide comprehensive support for installation, use, and maintenance of the system.
Installation: We provide our customers with detailed instructions for installation as well as the option to have a technician come to the home to perform the installation. We also offer training to ensure customers are familiar with the system and can safely install and use it.
Use: We are available to answer any questions customers may have about the use of the system. We can provide troubleshooting support and technical advice when needed.
Maintenance: We offer a maintenance plan that includes regular check-ups and preventive maintenance. This helps to ensure the system is running optimally and that any potential issues are caught and addressed quickly.
The Home Battery Energy Storage System will be packaged in a box designed to protect the system from any potential damage that may occur during shipping. The box will be made of corrugated cardboard with an inner liner of bubble wrap and foam. Inside the box, the system will be secured with foam blocks, bubble wrap, and other packing materials to ensure that no parts of the system are damaged during transport. The box will be labeled with the product name, the model number, and the shipping address.
The Home Battery Energy Storage System will be shipped with a reliable shipping carrier such as UPS, FedEx, or DHL. All shipments will be tracked and insured in order to ensure that the system arrives safely and on time. All shipments will require a signature upon delivery.
