Product Details
Place of Origin: China
Brand Name: SWP
Model Number: SWP-48200RM
Payment & Shipping Terms
Minimum Order Quantity: 200
Packaging Details: Carton Or Wooden
Delivery Time: 25
Payment Terms: T/T, L/C
Supply Ability: 500PCS/Day
Application: |
Residential, Commercial |
Power: |
3-10kW |
Voltage: |
51.2V |
Battery Management System: |
Yes |
Remote Monitoring System: |
Yes |
Communication Interface: |
RS232,RS485, CAN |
Safety Protection: |
Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection |
Cycle Life: |
5000-8000 |
Application: |
Residential, Commercial |
Power: |
3-10kW |
Voltage: |
51.2V |
Battery Management System: |
Yes |
Remote Monitoring System: |
Yes |
Communication Interface: |
RS232,RS485, CAN |
Safety Protection: |
Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection |
Cycle Life: |
5000-8000 |

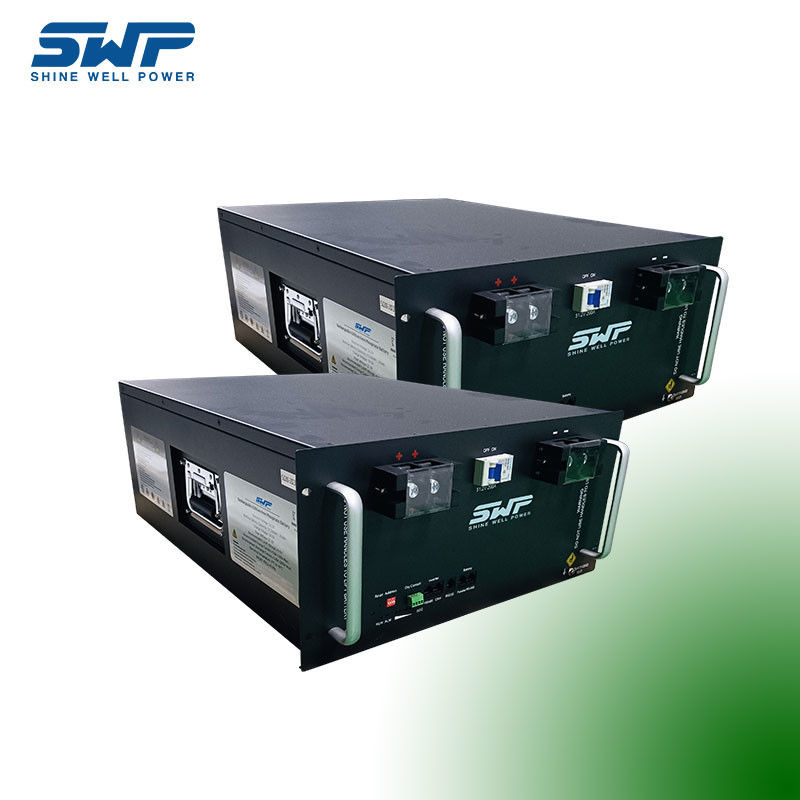

512.V 200Ah Battery Management System included Home Solar Battery Storage System for -20C-50C Environments
The Home Battery Energy Storage System is a reliable, efficient, and safe energy storage solution that can be used in residential and commercial applications. With a power range from 3kW to 10kW, it provides a secure energy storage option with safety protection features such as overcharge, overdischarge, overcurrent, short circuit, and temperature protection. The system is also compatible with most inverters and has a sophisticated battery management system to ensure optimal performance. The Home Energy Battery Storage System is an ideal choice for those looking for a reliable, cost-effective, and safe energy storage solution.
| SWP51200-RM House energy storage system | ||
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah | |
| Parallel Connection | Max. 16 units | |
| BMS | 16S200A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | RS232 RS485 and CAN | |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100% @ 0.2C | |
| Discharge Efficiency | 98%-100% @ 1C | |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 100A | |
| Fast Current | 200A | |
| Discharge Specifications | Standard Current | 200A |
| Max.Con.Discharge | 300A | |
| Cut-Of Voltage | 40±0.2V | |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 85 | |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal | |
| Cases Color/Material | Black Metal Cases | |
| Cells Type | EVE 3.2V100Ah | |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) | |
| Storage Temp | -20℃-45℃ (-4℉-113℉) | |
| Battery Type | LiFePO4 | |
| Cycle | The cycle life shall not be less than 3000 times when DOD is 100%. The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
|
| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) | |
| After-sales service period | 5 Years | |
| Estimate useful life | ≥10 Years | |
| With Display | No | |
| Technology Parameter | Description |
|---|---|
| Home Lithium Storage Battery | Yes |
| Remote Monitoring System | Yes |
| Communication Interface | RS232, RS485, CAN |
| Warranty | 5 Years |
| Operating Temperature | -20℃~50℃ |
| Battery Management System | Yes |
| Application | Residential, Commercial |
| Capacity | 5-20kWh |
| Compatible Inverter | Yes |
| Safety Protection | Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature Protection |
| Power | 3-10kW |
The SWP Home Battery Energy Storage System is the ideal energy storage solution for residential and commercial applications. This powerful system comes with a 5-year warranty, and it is available in wall-mounted and floor-mounted formats. With its 3-10kW power output, the SWP-48100RM can be used to store energy efficiently for up to 5000-8000 cycles. This energy storage battery is perfect for those looking for an efficient and reliable household battery storage system.
This Home Battery Energy Storage System is the perfect choice for your home solar energy storage needs. SWP-48100RM has a power range of 3-10kW, and an operating temperature range of -20℃~50℃. It is equipped with a remote monitoring system and a battery management system for easy operation. It is also backed by a 5-year warranty. This Home Solar Battery Storage System is the ultimate Battery Energy Storage Station for your home.
We provide technical support and services for our Home Battery Energy Storage System products. Our team of technical experts are available to help you with any queries or issues you may have.
We provide technical advice and troubleshooting assistance for installation, operation, maintenance and repair of our Home Battery Energy Storage System products. We also have online resources such as user manuals, instructional videos and FAQs to help you get the most out of your Home Battery Energy Storage System.
If you need further assistance, our technical team is available to help. We provide phone, email and live chat support during regular business hours. We also offer extended hours support for urgent matters.
At Home Battery Energy Storage System, we take pride in providing quality technical support and services to our customers.
Packaging and Shipping for Home Battery Energy Storage System:
