20Kwh Safety Home Energy Stackable Battery Storage Wide Temperature Range -20C-60C long cycle LiFePO4 battery cells
Product Description:

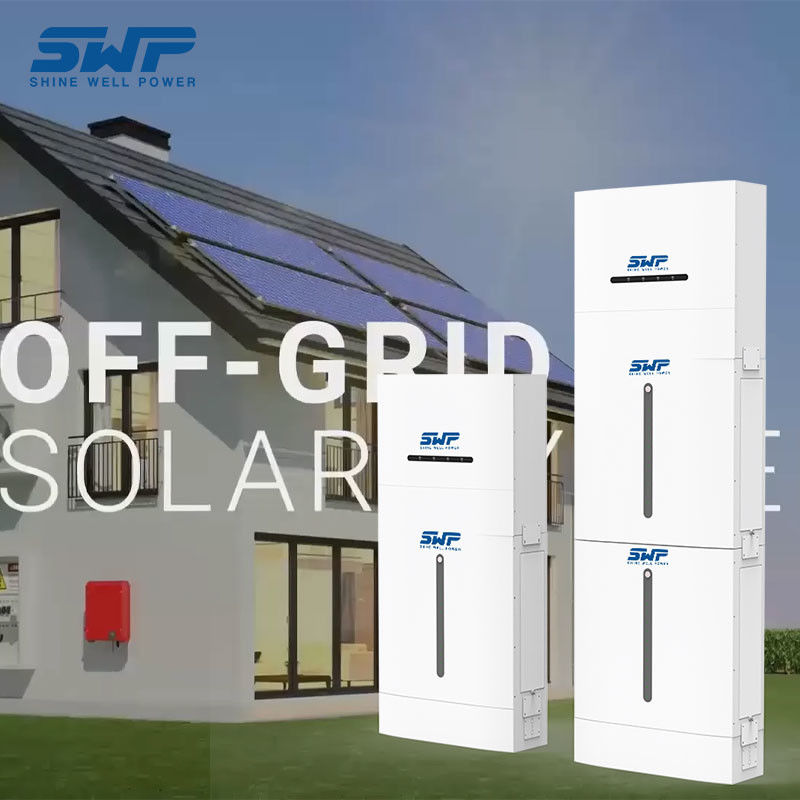

SWP Stackable Battery Storage is an innovative solution designed to meet your home energy storage needs. It efficiently stores energy generated by your solar panel system, providing you with a reliable and secure source of power. With an operating temperature range of -20℃ to 60℃, it is capable of functioning effectively in extreme climates, ensuring consistent energy storage and delivery regardless of the weather conditions.
Safety is a top priority, and our home battery storage system is equipped with comprehensive protection features. These include safeguards against DC Reverse Polarity, AC Short Circuit, Leakage, and battery Input Reverse Polarity. These measures ensure the safe and reliable operation of the system, minimizing the risk of potential accidents or damage.
The Stackable Battery Storage also boasts a high charge/discharge efficiency of up to 97%. This means that a significant portion of the stored energy can be efficiently utilized when you need it, maximizing the overall efficiency of your energy storage system.
Additionally, the system supports a discharging temperature range of -20℃ to 60℃, allowing you to access stored energy even in challenging temperature conditions. This versatility ensures that you can rely on your home battery storage system to provide power when you need it most.
With our Stackable Battery Storage, you can have peace of mind knowing that your home energy storage system is equipped to handle any environmental challenges. It offers reliable performance, comprehensive safety features, and efficient energy utilization, making it an ideal choice for homeowners seeking a dependable and secure energy storage solution.
| MODEL |
TH-51200-SP |
| Nominal Dc voltage |
51 .2V |
| Battery capacity |
200Ah |
400Ah(200Ah*2) |
| Energy(kwh) |
10.24kwh |
20.48kwh |
| Maximum Discharging current |
100A |
| cycle Life |
6000cycles(80%DOD) |
| certification |
UN38.3,MSDS,CE-EMC,IEC62619,UL1973 |
System GeneralData
| Temperature range |
-20~60℃ |
| Environmenthumidity |
0-95% |
| Dimensions (H*w*D)mm |
1300*620*212mm |
1895*620*212mm |
| Netweight (kg |
120KG |
220KG |
| communicationmethod |
WIFl/4G |
| Grid connection certification |
CE-LVD;CE-EMC;EN50549;1/CEI-021;VDE4105/0124;G99;IEC61727/62116/61683;NA/EEA-NE7-CH2020 |
Model SWP-3600ST SWP-5000ST SWP-6000ST
PV input (DC)
| Recommend Max.PV input power |
8700Wp |
10000Wp |
11000Wp |
| Max.PVVoltage |
600V |
| Min.operation/start-up voltage |
40V / 50V |
| Rated PV input voltage |
360V |
| No.ofindependentMPPTinputs/strings |
2/1 |
Efficiency
| Max.efficiency |
97.5% |
97.7% |
| Eurpean efficiency |
97% |
97.3% |
Protection & Function
| Protection |
DC Revese Polarity /AC Short circuit /Leakage/battery input reverse polarity |
| Surge Protection |
DC type Ⅱ/AC type Ⅱ |
| DC swith (PV)/DC fuse(battery) |
Yes |
| Battery input reverse polarity protection |
Yes |
General Data
| Dimensition(W*H*D) |
600*365*180mm |
| Weight |
≤20Kg |
| Degree Of Protection |
IP65 |
| Operating ambient emperature rang |
-25℃~60℃,0~100% |
| Max.Operating Altitude |
4000m |
General Data
| Rated Output Power For Backup Load |
6000W |
Backup Data(Off-Grid Model)
| Rated Voltage |
220V/230V/240V(±2%) |
| Frequency Range |
50HZ/60HZ(±0.5%) |
| Rated out power |
3680W/3680VA |
5000W/5000VA |
5000W/6000VA |
| Peak ourput power |
8400VA.10S |
Features:
- Product Name: Stackable Battery Storage
- Cycle Life: ≥6000
- Charging Temperature: 0℃~45℃
- Charge/Discharge Efficiency: ≥97%
- Operating Temperature: -20℃~60℃
- Safety Protection: DC Revese Polarity /AC Short Circuit /Leakage/battery Input Reverse Polarity
- Home Battery Storage System
- Commercial Battery Storage Systems
- Energy Storage Solution
Technical Parameters:
| Product Name |
Stackable Battery Storage |
| Voltage |
40V~58.4V |
| Weight |
120Kh/Module |
| Cycle Life |
≥6000 |
| Charge/Discharge Efficiency |
≥97% |
| Charge/Discharge Current |
≤200A |
| Charging Temperature |
0℃~45℃ |
| Discharging Temperature |
-20℃~60℃ |
| Operating Temperature |
-20℃~60℃ |
| Warranty |
5 Years |
Applications:
Stackable Battery Storage – SWP-48200ST
The Stackable Battery Storage SWP-48400ST is an energy storage lithium battery, designed to provide reliable and efficient storage for both commercial and residential applications. With an operating temperature range of -20℃ to 60℃, a voltage of 40V to 58.4V, and an efficiency rating of 97% or higher, this stackable battery system is an ideal choice for those looking for a reliable and efficient energy storage solution.
Safety is paramount with the Stackable Battery Storage SWP-48200ST, featuring DC Revese Polarity, AC Short Circuit, Leakage, and Battery Input Reverse Polarity protection. This product is UL, MSDS, and CE certified, with a minimum order quantity of 100 and a delivery time of 25 days.
Whether you’re looking for a residential or commercial battery storage system, the Stackable Battery Storage SWP-48200ST is the perfect choice for reliable and efficient energy storage.
Customization:
Stackable Battery Storage Custom Service
We offer custom service for Stackable Battery Storage, with the following specifications:
- Brand Name: Stackable Battery System
- Model Number: SWP-48400ST
- Place of Origin: China
- Certification: UL, MSDS, UN38.3, CE
- Minimum Order Quantity: 100
- Delivery Time: 25
- Charge/Discharge Efficiency: ≥97%
- Operating Temperature: -20℃~60℃
- Warranty: 5 Years
- Cycle Life: ≥6000
- Weight: 120Kg/Module
Our Stackable Battery Storage is the best choice for Home Solar Battery Storage, Home Energy Storage Battery, Home Energy Battery Storage.
Packing and Shipping:
Packaging and Shipping for Stackable Battery Storage:
Our Stackable Battery Storage products will be packaged in a corrugated cardboard box, secured with bubble wrap and packing tape. The box will be clearly labeled with the product name and barcode. When shipping, the box should be placed in an outer container to provide additional protection. Delivery should be made via a reputable and reliable courier service.
FAQ:
Questions & Answers about Stackable Battery Storage
Q1: What is the brand and model number of the stackable battery system?
A: The brand name is Stackable Battery System and the model number is SWP-48200ST.
Q2: Where is the stackable battery system manufactured?
A: The stackable battery system is manufactured in China.
Q3: What certifications does the stackable battery system have?
A: The stackable battery system is certified by UL, MSDS, UN38.3 and CE.
Q4: What is the minimum order quantity of the stackable battery system?
A: The minimum order quantity of the stackable battery system is 100.
Q5: How long does it take to deliver the stackable battery system?
A: It takes 25 days to deliver the stackable battery system.
