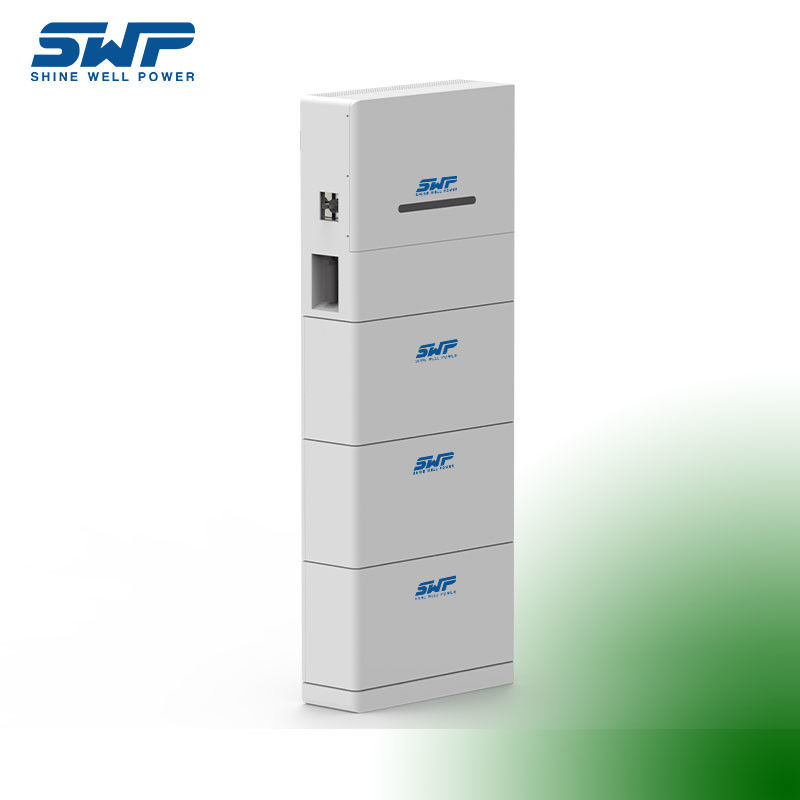

single 51.2V100Ah stackable battery pack White Stackable Battery Storage Mental Efficient and Easy to Stack
Product Description:
The Stackable Battery Storage is a household energy storage battery, industrial battery storage systems, and high voltage battery storage system that is designed to provide reliable storage for a variety of applications. The battery storage system is made of metal and is available in black and white color options. The battery storage system is designed for high-quality performance and offers a 5-year warranty. It is designed with a cycle life of up to 6000 and a charge/discharge rate of 0.5C to 1C, making it ideal for a variety of applications. The advanced design and reliable components of the Stackable Battery Storage make it the perfect choice for any situation.
| MODEL |
TH-51 100-SP |
| Nominal DC voltage |
51.2V |
| Battery capacity |
100Ah |
200Ah(100Ah*2) |
300Ah(100Ah*3) |
| Energy(kwh) |
5.12kwh |
10.24kwh |
15.36kwh |
| Maximum Discharging current |
100A |
| cycle Life |
6000 cycles(80%DOD) |
| certification |
UN38.3,MSDS,CE-EMC |
| system General Data |
| Temperature range |
-20~60℃ |
| Environmenthumidity |
0-95% |
| Dimensions (H*w*D)mm |
985*630*205mm |
1316*630*205mm |
1648*630*205mm |
| Netweight (kg) |
130kg |
180kg |
230kg |
| communicationmethod |
WIFl/4G |
| Gridconnectioncertification |
IEC62619/CE/MSDS/UN38.3/UL |
| MODEL |
SWP-3600-ST |
SWP5000-ST |
SWP6000-ST |
| PV-Input(DC) |
| Recommend Max.PV Input Power |
8700WP |
10000WP |
11000WP |
| Max PV Votage |
600V |
| Max Operation / Start-up votage |
40V / 50V |
| Rated PV Input Votage |
360V |
| No. Independent MTTP Inputs/Strings |
2/1 |
| Input Output (AC) |
| Max AC Input Power From Grid |
8700VA |
10000VA |
11000VA |
| Rated AC Output Power |
3680W |
5000W |
6000W |
| Max.AC Output Power |
3680W |
5000W |
6000W |
| Rated AC Votage |
220V / 230V / 240V |
| AC Votage Range |
154V ~ 276V |
| Rated Grid Frequency |
50Hz / 60Hz |
| Grid Type |
Single Phase |
| Efficiency |
| Max Efficiency |
97.50% |
97.70% |
| Eurpean Efficiency |
97.00% |
97.30% |
| Protection / Function |
| Protection |
DC Reverse Polarity / AC Short Circuit / Leakage / Battery Input Reverse Polarity |
| Surge Prodection |
DC Type Ⅱ / AC Type Ⅱ |
| DC Swith (PV) / DC Fuse (battery) |
Yes |
| Battery Input Reverse Polarity Protection |
Yes |
| Genera Data |
| Dimensions (H*W*D)mm |
600*365*180 |
| Netweight (kg) |
≤ 20 |
| Degree Of Protection |
IP65 |
| Operating Ambient Temperature Rang |
-20~65℃,0~100% |
| Max Operating Altitude |
4000m |
| Genera Data |
| Rated output Power For Load |
6000W |
| Backup Data ( off-grid model) |
| Rated Votage |
220V / 230V / 240V |
| Frenquency Range |
50Hz / 60Hz ± 5% |
| Rated Outpower Power |
3680W/3680VA |
5000W/5000VA |
5000W/6000VA |
| Peak Output power |
8400VA . 10S |
Features:
- Energy Battery Storage: Stackable Battery Storage
- Home Energy Battery Storage: Stackable Battery Storage with charge/discharge rate of 0.5C~1C and capacity of 100Ah
- Energy Storage Batteries: Stackable Battery Storage with metal material and 5-year warranty
Technical Parameters:
| Product Name |
Parameter |
| Home Energy Storage Battery / Household Energy Storage Battery / Energy Storage Batteries |
Color: Black / White
Charge/Discharge Rate: 0.5C~1C
Warranty: 5 Years
Capacity: 100Ah
Cycle Life: ≥6000
Material: Mental |
Applications:
Stackable Battery Storage: Home Battery Storage System
Stackable Battery Storage is a home energy storage battery system that offers the perfect solution for energy storage needs. It is designed with a brand name of Stackable Battery System, model number SWP-48200ST, and has passed UL, MSDS, UN38.3 and CE certifications. It requires a minimum order of 100 and the delivery time is 25 days. This unique storage system is made of metal and has a 5-year warranty with a cycle life of ≥6000. It is available in black and white colors.
Stackable Battery Storage is the ideal home battery storage system for all your energy storage needs. It is designed to be stackable, allowing for easy installation and efficient use of space. It is also designed to be safe and reliable, offering a long cycle life and a 5-year warranty. With its UL, MSDS, UN38.3 and CE certifications, you can be sure that it is a top-quality product.
If you are looking for an efficient and reliable energy storage system for your home, then Stackable Battery Storage is the perfect choice. It is ideal for both residential and commercial use and is designed to be stackable and easy to install. The long cycle life and 5-year warranty offer peace of mind that your energy storage needs are taken care of.
Customization:
Customized Service for Stackable Battery Storage
Brand Name: stackable battery system
Model Number: SWP-51100ST
Place of Origin: China
Certification: UL, MSDS, UN38.3, CE
Minimum Order Quantity: 100
Delivery Time: 25
Warranty: 5 Years
Capacity: 100Ah
Charge/Discharge Rate: 0.5C~1C
Material: Mental
Color: Black / White
We offer customized service for Stackable Battery Storage. This electric stacker battery is an industrial battery storage system which is certified with UL, MSDS, UN38.3 and CE. It is made of mental and available in black and white. It has a capacity of 100Ah and a charge/discharge rate of 0.5C~1C. The minimum order quantity is 100 and the delivery time is 25 days. The warranty is 5 years.
Support and Services:
Stackable Battery Storage Technical Support & Services
We offer a range of technical support and services for Stackable Battery Storage, including:
- 24/7 customer service
- Diagnostic and troubleshooting assistance
- Software and hardware updates
- Replacement parts and components
- User guides and manuals
- Live webinars and online tutorials
For more information, please contact us at support@stackablebatterystorage.com or call us toll-free at 1-800-555-5555.
Packing and Shipping:
Packaging and Shipping for Stackable Battery Storage
Stackable Battery Storage requires special packaging and shipping procedures to ensure safe delivery to the customer. The following steps should be taken to ensure the product is properly packaged and shipped:
- Inspect the product for any damage or defects.
- Securely package the product in the appropriate box or packaging.
- Label the package with the customer's address, shipping instructions, and other relevant information.
- Schedule shipping with a reliable courier.
- Track the package throughout the delivery process.
FAQ:
- Q1: What is Stackable Battery Storage?
- A1: Stackable Battery Storage is a lithium ion battery storage system with a brand name of stackable battery system, model number of SWP-51100ST, and it is made in China. It is certified by UL, MSDS, UN38.3 and CE. The minimum order quantity is 100 and the delivery time is 25 days.
- Q2: What is the capacity of Stackable Battery Storage?
- A2: The Single capacity of Stackable Battery Storage is 51100mAh.
- Q3: What is the size of Stackable Battery Storage?
- A3: The size of Stackable Battery Storage is 12.5 x 8.3 x 6.9 inches.
- Q4: What is the weight of Stackable Battery Storage?
- A4: The weight of Stackable Battery Storage is 120~220 Kg.
- Q5: What is the voltage of Stackable Battery Storage?
- A5: The voltage of Stackable Battery Storage is 51.2V.
