Seamless Power Supply with 2-4 Hours Discharge Time Home Solar Battery Storage System
Product Description:

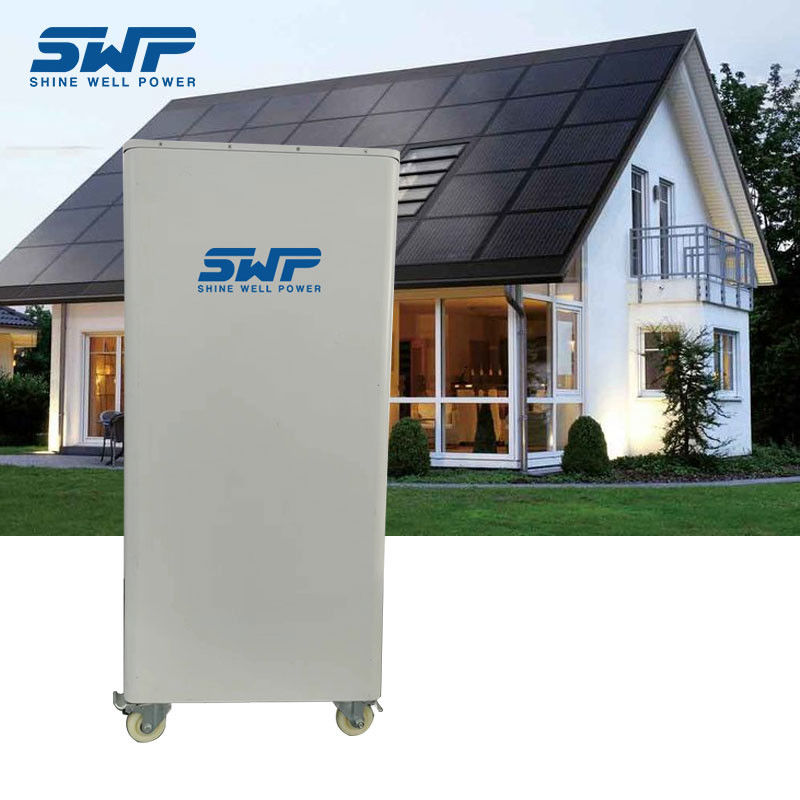

Lithium Battery Energy Storage System is a solar energy storage battery that provides an ideal and efficient energy storage solution for a wide range of applications. It features a high cycle life of 6000-8000 times, low cost, high capacity of 100-200Ah, long lifespan of 5-10 years, and short charge time of 2-4 hours. This Battery Energy Storage System is designed with advanced technology to ensure reliable performance and excellent results. It provides an efficient and cost-effective solution for energy storage needs, and is suitable for home, industrial and commercial applications. It is a reliable and safe energy storage system that will serve its purpose for a long time.
| SWP51200-FS |
| Electrical specifications |
Nominal Voltage |
51.2V |
| Nominal Capacity |
200Ah |
| Parallel Connection |
Max. 16 units |
| BMS |
16S200A |
| Circuit Protection |
Over charge, Over discharge, Over current, Over temp, Short, Balance |
| Communication |
RS232 RS485 and CAN |
| Cycle Life |
3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge |
Less than 3% per month |
| Charge Efficiency |
100% @ 0.2C |
| Discharge Efficiency |
98%-100% @ 1C |
| Charge Specifications |
Charge Voltage |
57.6V±0.8V |
| Standard Current |
100A |
| Fast Current |
200A |
| Discharge Specifications |
Standard Current |
200A |
| Max.Con.Discharge |
300A |
| Cut-Of Voltage |
40±0.2V |
| Mechanical Specifications |
Dimension (mm) |
Customized |
| Approx Weight (KG) |
90 |
| Terminal Type |
KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material |
Black / Siliver / White Metal Cases |
| Cells Type |
EVE 3.2V100Ah |
| Temperature Specifications |
Charge Temp |
0℃-55℃ (32℉-131℉) |
| Discharge Temp |
-20℃-60℃ (-4℉-140℉) |
| Storage Temp |
-20℃-45℃ (-4℉-113℉) |
| Battery Type |
LiFePO4 |
| Cycle |
The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate |
UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3 (Cell / Pack) , ROHS (Cell) |
| After-sales service period |
5 Years |
| Estimate useful life |
≥10 Years |
| With Display |
No |
Features:
- Product Name: Lithium Battery Energy Storage System
- All In One Energy Storage System
- Home Solar Battery Storage System
- Energy Storage System for Solar
- Discharge Time: 2-4 Hours
- Reliability: High
- Size: Customized
- Capacity: 100-200Ah
- Weight: 80~100kg
Technical Parameters:
| Parameter |
Value |
| Type |
Lithium Battery Energy Storage System |
| Efficiency |
High |
| Reliability |
High |
| Lifespan |
5-10 Years |
| Safety |
High |
| Voltage |
3.7V-4.2V |
| Storage Temperature |
-20℃~45℃ |
| Cycle Life |
6000-8000 Times |
| Weight |
80~100kg |
| Charge Time |
2-4 Hours |
Applications:
The SWP-48200FS lithium battery energy storage system manufactured by SWP is an ideal choice for home energy storage systems. It offers a high capacity of 100-200Ah and can be used for energy battery storage and home lithium storage battery applications. Its long lifespan of 5-10 years ensures a low cost of ownership and a high level of safety. The storage temperature of the SWP-48200FS lithium battery can range from -20℃ to 45℃, making it suitable for different environmental conditions. This energy storage system is a reliable and cost-effective solution for home energy storage needs.
Customization:
SWP Lithium Battery Energy Storage System (BESS) - SWP-48200FS
Our SWP Lithium Battery Energy Storage System (BESS) is designed to store solar energy, providing high efficiency, high safety and long lifespan. Its superior performance will make it an ideal choice for energy storage solutions.
- Brand Name: SWP
- Model Number: SWP-48200FS
- Place of Origin: China
- Efficiency: High
- Storage Temperature: -20°C~45°C
- Weight: 80~100kg
- Safety: High
- Lifespan: 5-10 Years
The SWP-48200FS Lithium Battery Energy Storage System is the perfect solution for reliable, efficient, and safe solar energy storage. With its high performance and long lifespan, it is an ideal choice when looking for a battery energy storage system.
Support and Services:
Lithium Battery Energy Storage System Technical Support and Service
We offer technical support and service for our Lithium Battery Energy Storage System. Our team is available to answer your questions and help you maintain the system.
- Assistance with installation and setup
- Troubleshooting and repair
- Provide training and support for users
- Software and firmware updates
- Remote monitoring and diagnostics
- Regular maintenance and inspection
We strive to provide the best customer service and technical support to ensure your system is running at its peak performance.
Packing and Shipping:
Lithium Battery Energy Storage System Packaging and Shipping:
The Lithium Battery Energy Storage System should be packaged in a secure, waterproof, and durable container. The container should be properly sealed to ensure the safe transportation of the system. The container should be properly labeled with the necessary information such as the product name, model number, and shipping address. All necessary documents should also be included in the package such as installation manuals, safety instructions, and warranty information.
The Lithium Battery Energy Storage System should be shipped using an appropriate carrier. The carrier should be able to provide adequate tracking and delivery updates. All necessary insurance and security measures should be taken to ensure the safe delivery of the system.
FAQ:
- Q: What is the Brand Name of the Lithium Battery Energy Storage System?
- A: The Brand Name is SWP.
- Q: What is the Model Number of the Lithium Battery Energy Storage System?
- A: The Model Number is SWP-48200FS.
- Q: Where is the Lithium Battery Energy Storage System made?
- A: The Lithium Battery Energy Storage System is made in China.
- Q: What type of battery is used in the Lithium Battery Energy Storage System?
- A: The Lithium Battery Energy Storage System uses a lithium battery.
- Q: What is the capacity of the Lithium Battery Energy Storage System?
- A: The capacity of the Lithium Battery Energy Storage System depends on the size of the battery used.
