SWP 48280 2-4 Hours Discharge Time Lithium Battery Energy Storage System High Reliability
Product Description:
The Lithium Battery Energy Storage System is a powerful and reliable energy storage solution. With a capacity of 100-200Ah, the energy storage batteries are perfect for large scale applications. It has a wide operating temperature range from -20℃ to 60℃, providing reliable performance in almost any environment. The charge time is also incredibly fast, taking only 2-4 hours to bring the batteries up to full capacity. Additionally, the Lithium Battery Energy Storage System is extremely safe, with high safety standards, ensuring that the system can be used with confidence. All of these features make the Lithium Battery Energy Storage System an ideal choice for energy storage and power supply applications.
| No |
Item |
General Parameter |
Remark |
| 1 |
Rated Capacity |
Typical |
280Ah |
Standard discharge after Standard charge,we
recommend 0.2C charge and 0.5C discharge
|
| 2 |
Nominal Voltage |
3.2V |
Mean Operation Voltage |
| 3 |
Internal Impedance |
≤0.3mΩ |
Under 20±5℃ Environment Temperature , the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine to test 20 ±5℃ |
| 4 |
Standard charge |
140A |
Constant Current 0.5C5A,Constant Voltage 3.6V, 0.02C5A cut-off |
| 5 |
Rapid Charge |
280A |
Constant Current 1C5A,Constant Voltage 3.6V, 0.02C5A cut-off |
| 6 |
Standard Charge Cut-off Voltage |
3.65V |
Voltage of the battery when the Charge is stopped |
|
7
|
Standard Discharge Cut-off Voltage |
2.5V
|
Voltage of the battery when the discharge is stopped |
| 8 |
Standard discharge |
140A |
Constant current 0.5C
end voltage 2.5 V
|
| 9 |
Maximum discharge
current
|
280A |
Constant current:1C5A end voltage:2.5 V |
| 10 |
Dimension
(尺寸)
|
Thickness:71.5±0.5mm |
| |
|
Width:173.6±0.5mm |
| |
|
Height:204.8±0.6mm |
| 11 |
Weight |
5.22±0.2kg |
| 12 |
Operating Temperature Range |
Temperature:-30~55℃,Humidity: ≤60±25%RH |
| 13 |
Storage Temperature Range |
-30℃~60℃ |
| 15 |
Combination method |
16S1P |
|
| 16 |
Rated Capacity |
280Ah |
Standard discharge after Standard charge (package) |
| 17 |
Factory Voltage |
51.2V-52.8V |
| 18 |
Voltage at end of
Discharge
|
≤44.8V |
Discharge Cut-off Voltage |
| 19 |
Charging Voltage |
56V |
V=*3.5V |
| 20 |
Internal Impedance
|
≤12mΩ
|
Under 20±5℃ Environment Temperature , the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine to test 20±5℃ |
| 21 |
Max Charging Current(Icm) |
200A
|
Ampere-meter ,Maximum allowable charging current of the battery pack |
| 22 |
Limited Charging
Voltage(Ucl)
|
58.4V
|
Volta-meter (Serial*3.6V) ,Battery pack safe charging voltage |
| 23 |
Max Discharging current |
200A |
Maximum discharge current allowed by the battery pack |
| 24 |
Discharge Cut-off
voltage(Udo)
|
40V |
Voltage of the battery when the discharge is stopped |
| 25 |
Operation Temperature Range |
Charge:0~55℃/Discharge: -20~55℃ |
| 26 |
Storage Temperature Range |
-20℃~50℃
|
| 27 |
Single module Size/weight |
766*221*530mm /About 122Kg±3Kg |
| 28 |
Packaging size
(carton)/gross weight
|
L866*W695*328mm /About 125Kg±3Kg
|
| 29 |
Protection Grade |
IP20 |
Features:
- Product Name: Lithium Battery Energy Storage System
- Type: Home Energy Storage System, Home Lithium Storage Battery, Solar Energy Storage Battery
- Charge Time: 2-4 Hours
- Discharge Time: 2-4 Hours
- Cost: Low
- Size: Customized
Technical Parameters:
| Attribute |
Specification |
| Type |
Lithium Battery Energy Storage System |
| Capacity |
100-200Ah |
| Cost |
Low |
| Lifespan |
5-10 Years |
| Safety |
High |
| Weight |
80~100kg |
| Discharge Time |
2-4 Hours |
| Voltage |
3.7V-4.2V |
| Storage Temperature |
-20℃~45℃ |
| Cycle Life |
6000-8000 Times |
Applications:

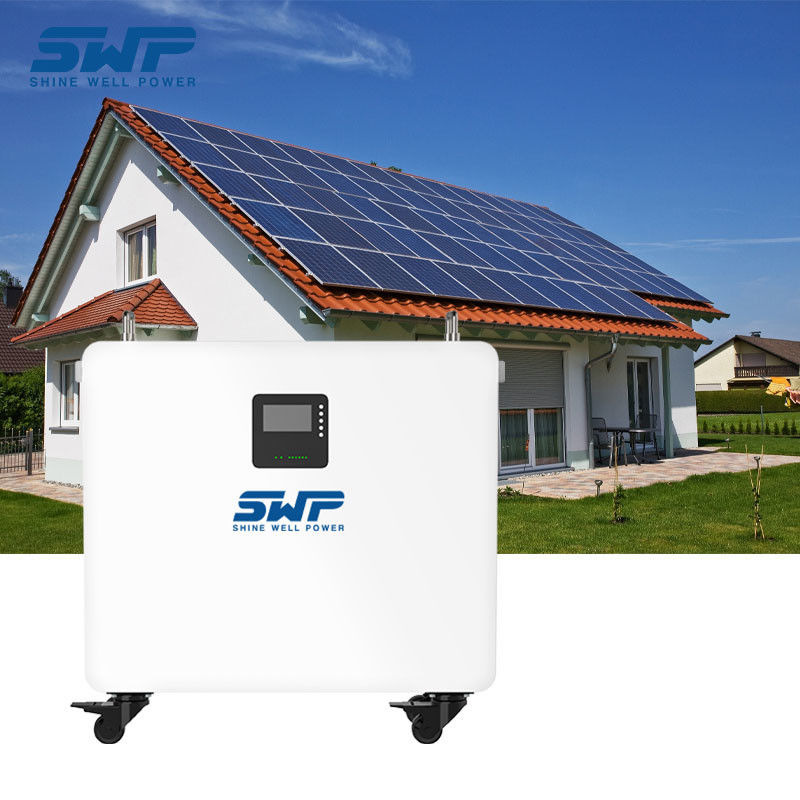

SWP Lithium Battery Energy Storage System for Home Solar Energy Storage
The SWP-48200FS Lithium Battery Energy Storage System is a high efficiency storage solution for home solar energy storage. This system is designed to provide reliable energy storage with a lifespan of 5-10 years, and has a wide operating temperature range of -20℃ to 60℃. The storage temperature of the system is -20℃ to 45℃.
The SWP-48200FS is the perfect choice for any home solar energy storage solution. Its robust design and long lifespan make it the ideal choice for long term energy storage. The system is also capable of handling high levels of energy output, making it a great choice for both residential and commercial applications.
The SWP-48200FS Lithium Battery Energy Storage System is an ideal choice for any home energy storage solution. Its high efficiency, long lifespan, and wide operating temperature range make it the perfect choice for residential and commercial applications. The system is also designed to be reliable and efficient, making it a great choice for long-term energy storage.
Customization:
Customized Services for Lithium Battery Energy Storage System
- Brand Name: SWP
- Model Number: SWP-48200FS
- Place of Origin: China
- Discharge Time: 2-4 Hours
- Cost: Low
- Charge Time: 2-4 Hours
- Cycle Life: 6000-8000 Times
- Type: Energy Storage Batteries, Battery Energy Storage System, Energy Battery Storage System, Lithium Battery Energy Storage System
Support and Services:
Lithium Battery Energy Storage System Support and Service
We provide comprehensive support and service for Lithium Battery Energy Storage System, which includes:
- Installation and commissioning service
- Maintenance and troubleshooting
- Software and firmware updates
- Technical consultation
- Replacement parts
- Training
If you have any questions or need support, please do not hesitate to contact us.
Packing and Shipping:
Packaging and Shipping: Lithium Battery Energy Storage System
For packaging and shipping of the Lithium Battery Energy Storage System, the following processes are carried out:
- The system is placed in a corrugated cardboard box.
- The box is completely sealed with tape.
- The box is labeled with the recipient's address and the contents of the box.
- The box is then placed in a larger box with sufficient padding to protect the contents.
- The larger box is sealed with tape and labeled with the recipient's address and the contents of the box.
- The box is then shipped via a reliable carrier.
FAQ:
- Q: What is SWP Lithium Battery Energy Storage System?
- A: SWP Lithium Battery Energy Storage System (Model Number: SWP-48200FS) is a lithium battery energy storage system produced by SWP in China.
- Q: What are the benefits of the SWP Lithium Battery Energy Storage System?
- A: The SWP Lithium Battery Energy Storage System offers many benefits. It has a high energy density, long cycle life, excellent safety, low self-discharge, no memory effect, wide operating temperature range, and fast charging time.
- Q: What is the capacity of the SWP Lithium Battery Energy Storage System?
- A: The SWP Lithium Battery Energy Storage System has a capacity of 48200FS.
- Q: What type of cells are used in the SWP Lithium Battery Energy Storage System?
- A: The SWP Lithium Battery Energy Storage System uses high-performance lithium-ion battery cells.
- Q: What is the warranty for the SWP Lithium Battery Energy Storage System?
- A: The SWP Lithium Battery Energy Storage System comes with a one-year warranty.
